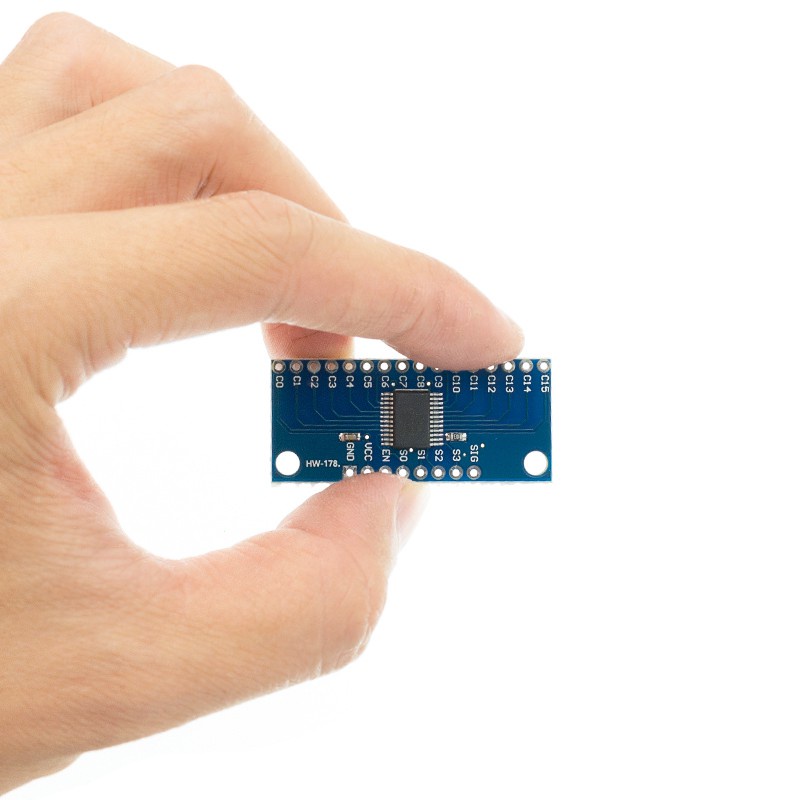

Cd74Hc4067 16-Channel บอร์ดโมดูลอะนาล็อกดิจิตอล Multiplexer

Function: gather all the way ADC 16 analog signals.

Use CD74HC4067 16-channel analog switch

Analog input: C0-C15 16-channel

Analog output: DIG

Channel Control: S0-S3

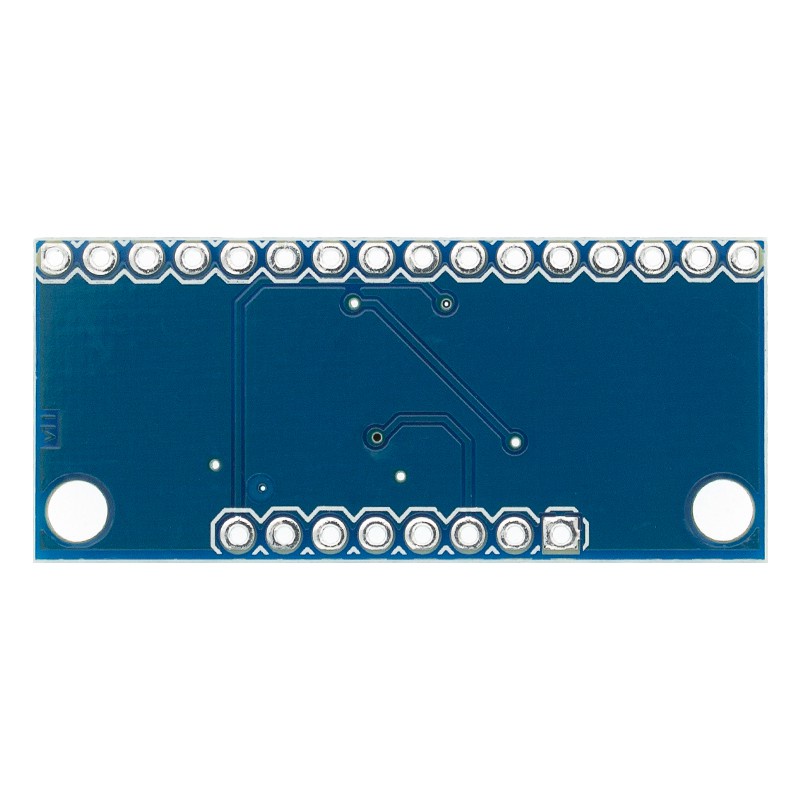

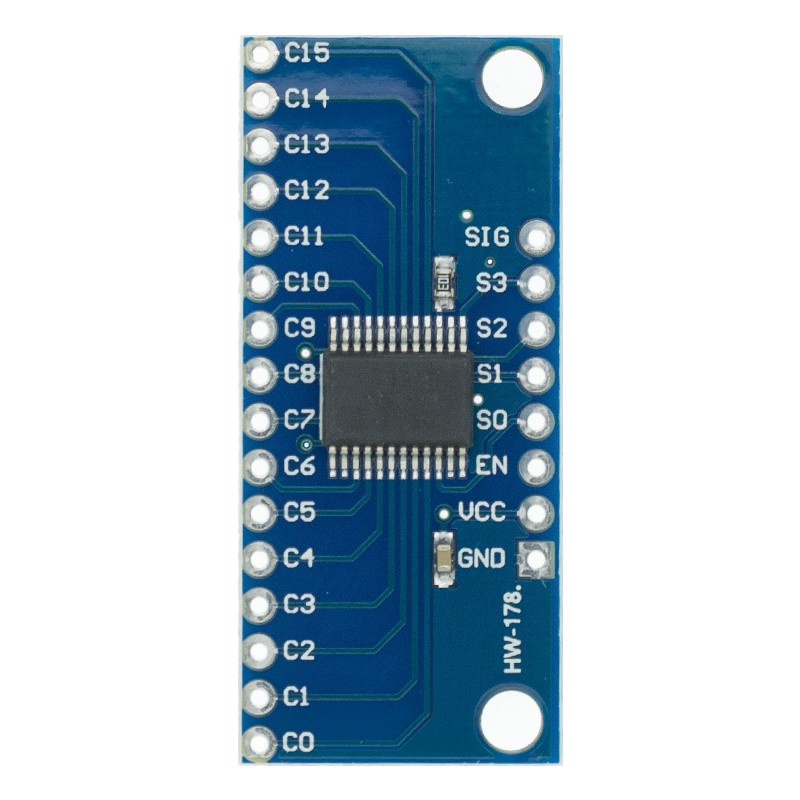

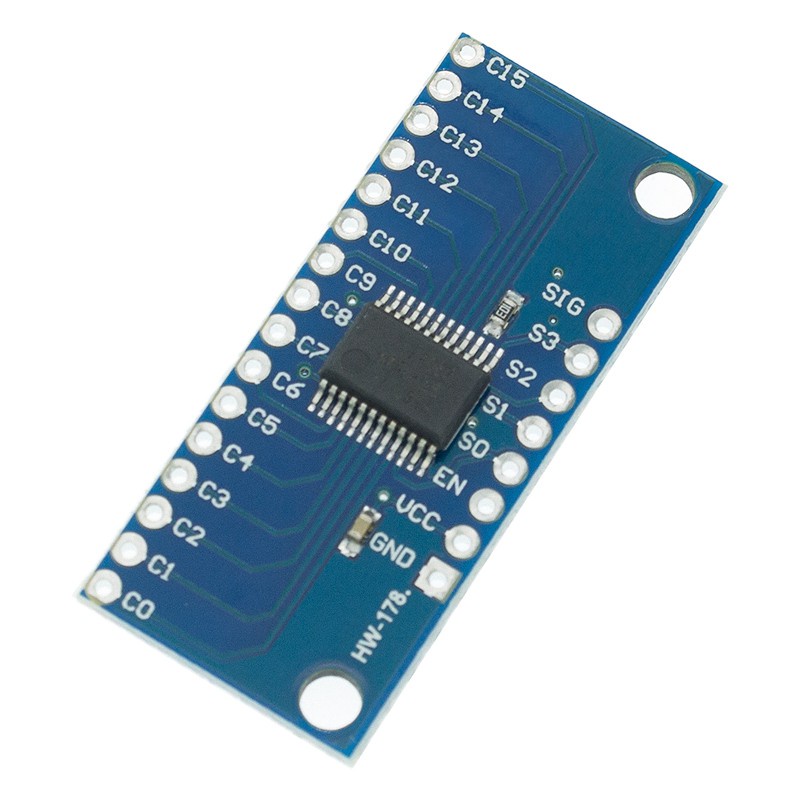

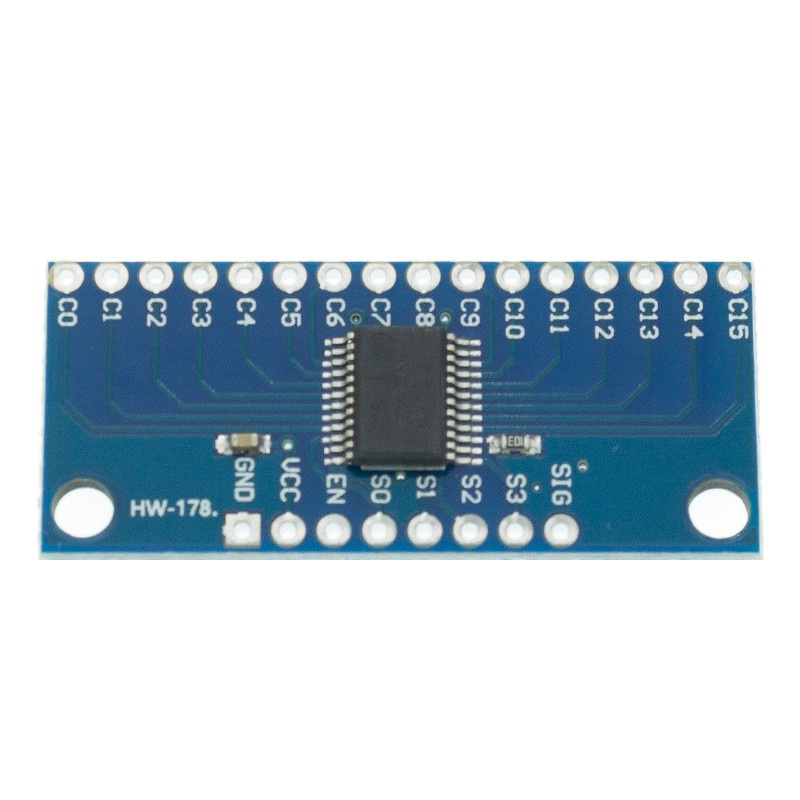

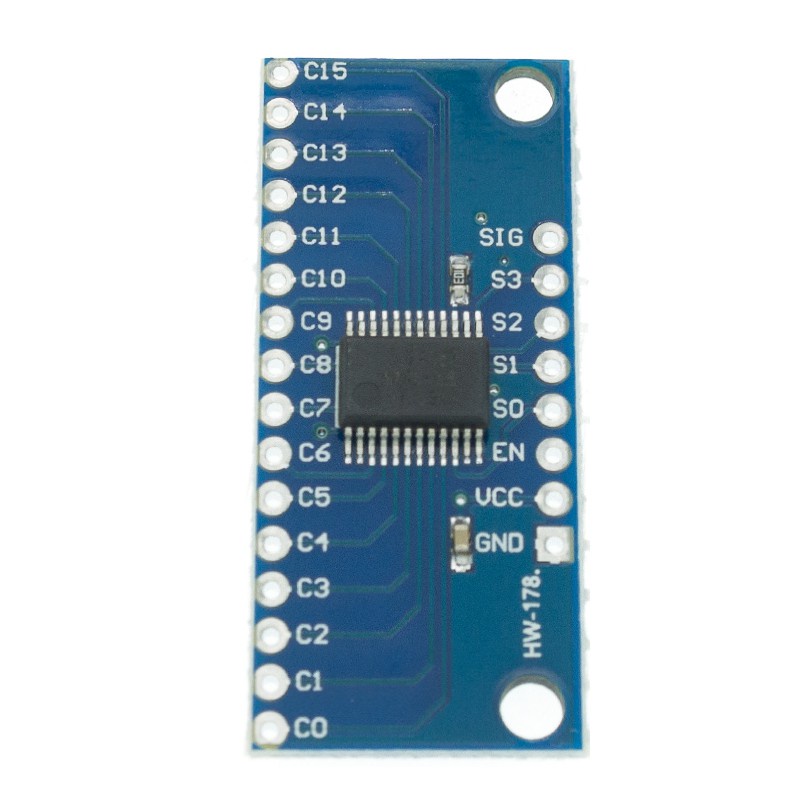

Description: This is a breakout board for the very handy 16-Channel Analog / Digital Multiplexer / Demultiplexer CD74HC4067 This chip is like a rotary switch - it internally routes the common pin (COM in the schematic, SIG on the board) to one of. 16 channel pins (CHANxx). It works with both digital and analog signals (the voltage can not be higher than VCC), and the connections function in either direction. To control it, connect 4 digital outputs to the chip's address select pins ( S0-S3), and send it the binary address of the channel you want (see the datasheet for details). This allows you to connect up to 16 sensors to your system using only 5 pins!

Since the mux / demux also works with digital signals, you can use it to pipe TTL-level serial data to or from multiple devices. For example, you could use it ...
