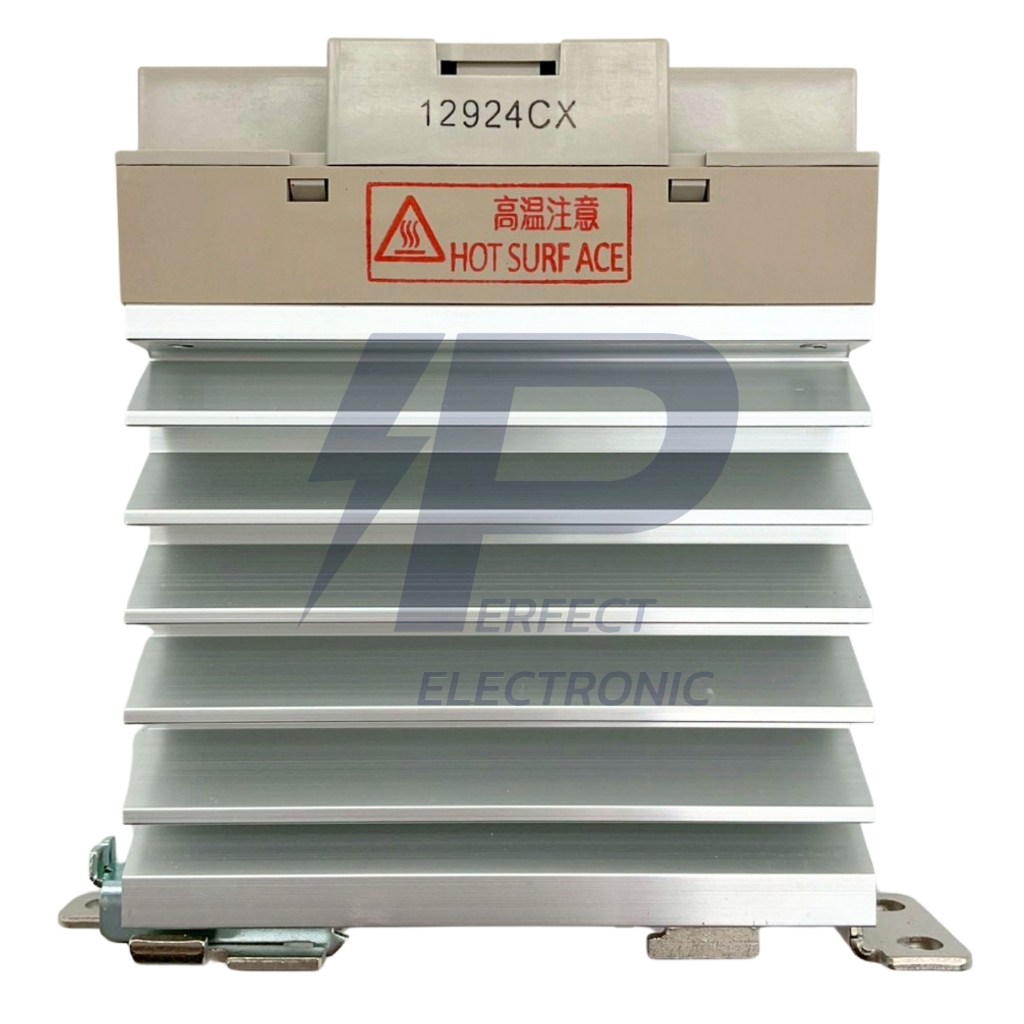

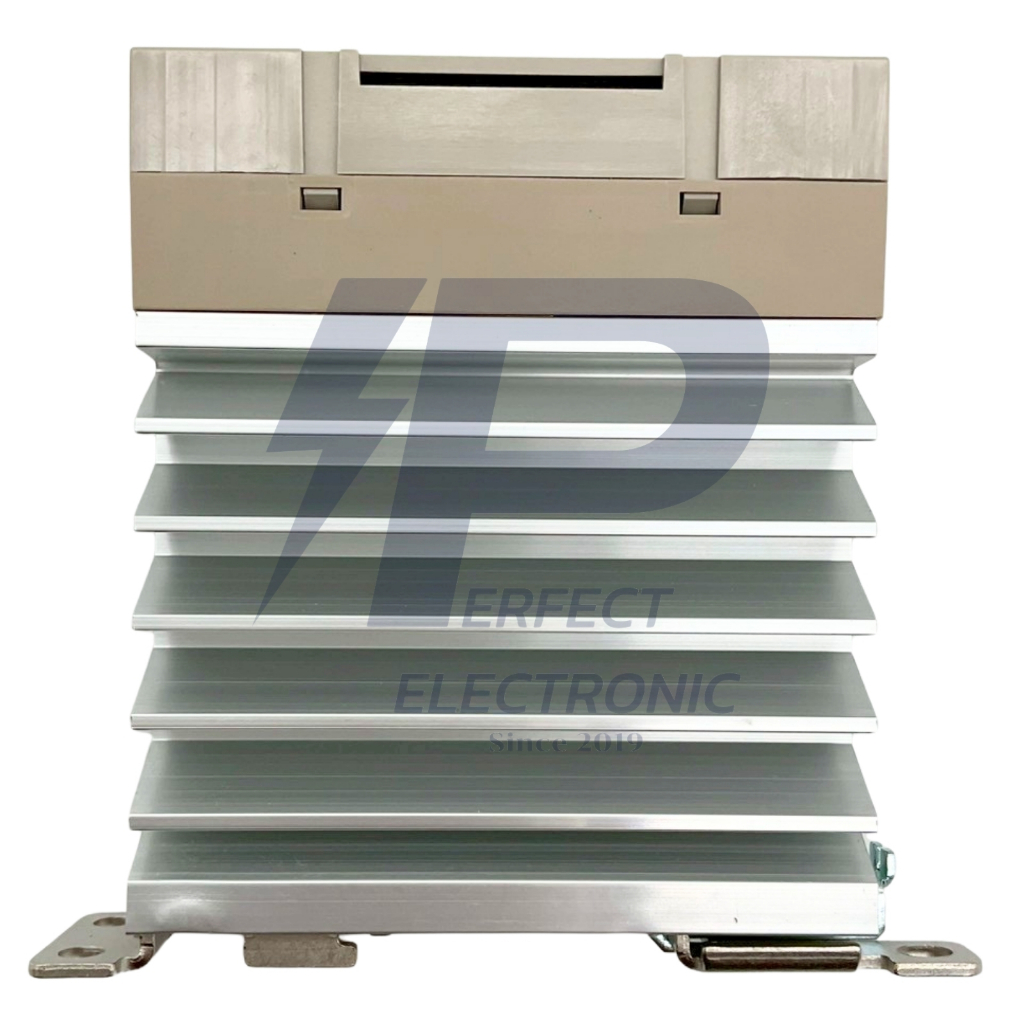

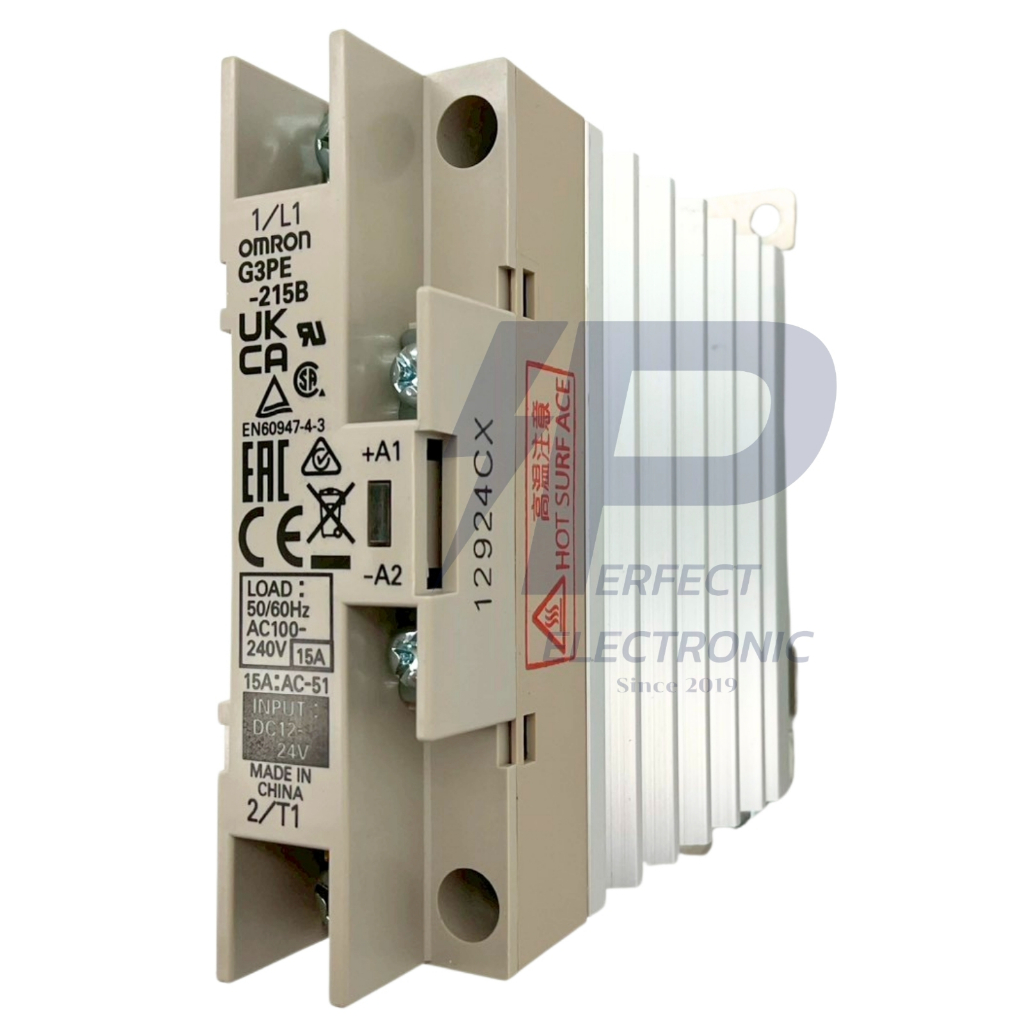

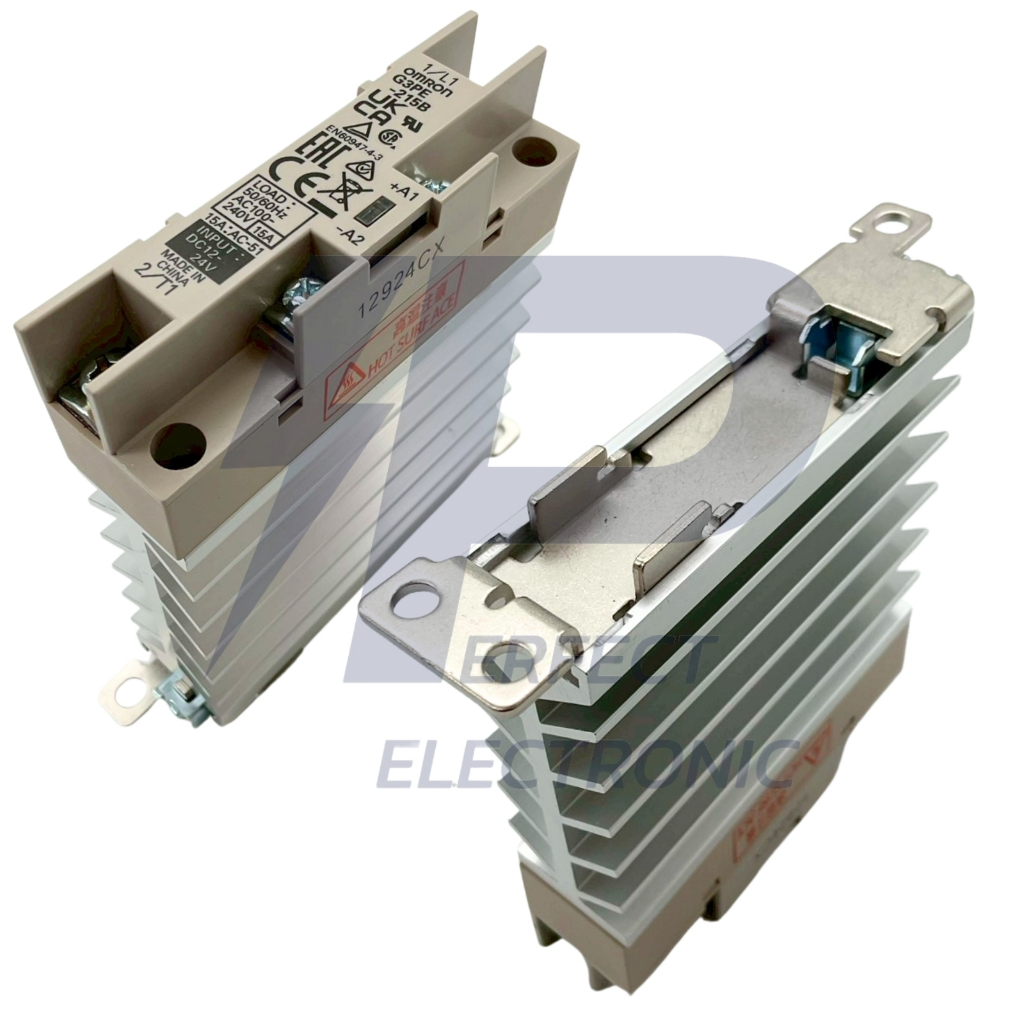

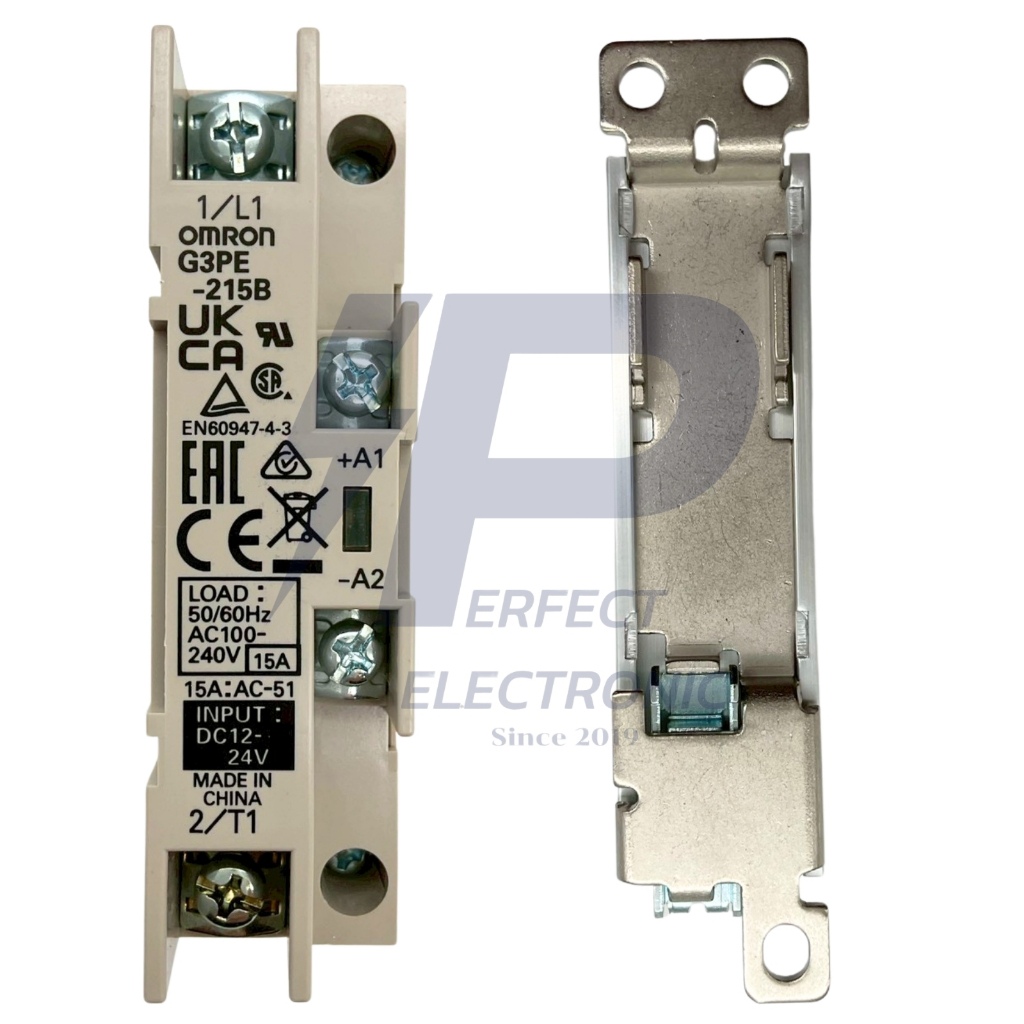

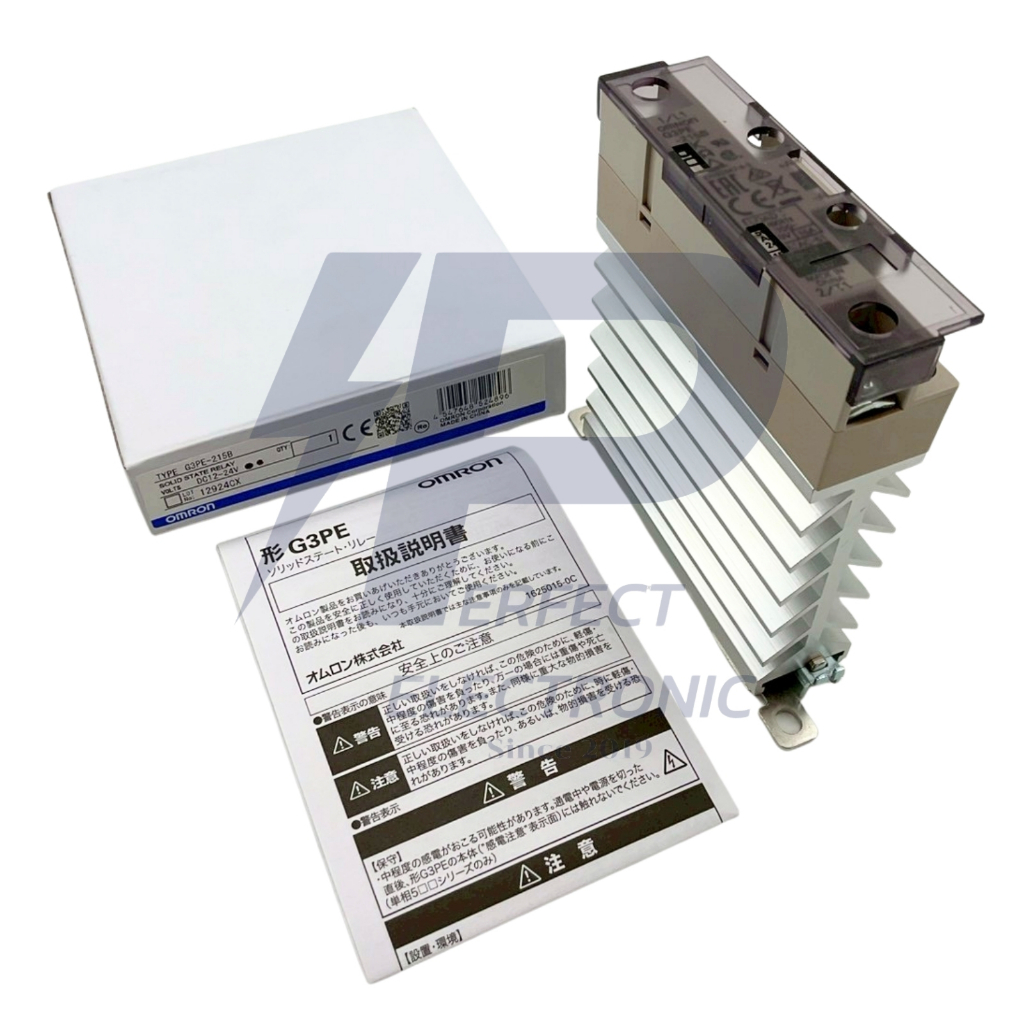

G3PE-215B DC12-24 OMRON Solid State Relay โซลิดสเตตรีเลย์ พร้อมฮีทซิงค์ " ของแท้ " 15A 100-240VAC/12-24VDC, 1 Phase

G3PE-215B DC12-24 OMRON Solid State Relay โซลิดสเตตรีเลย์ พร้อมฮีทซิงค์ " ของแท้ " 15A 100-240VAC/12-24VDC, 1 Phase (มีการรับประกันสินค้า) สินค้ามีพร้อมส่งในไทย

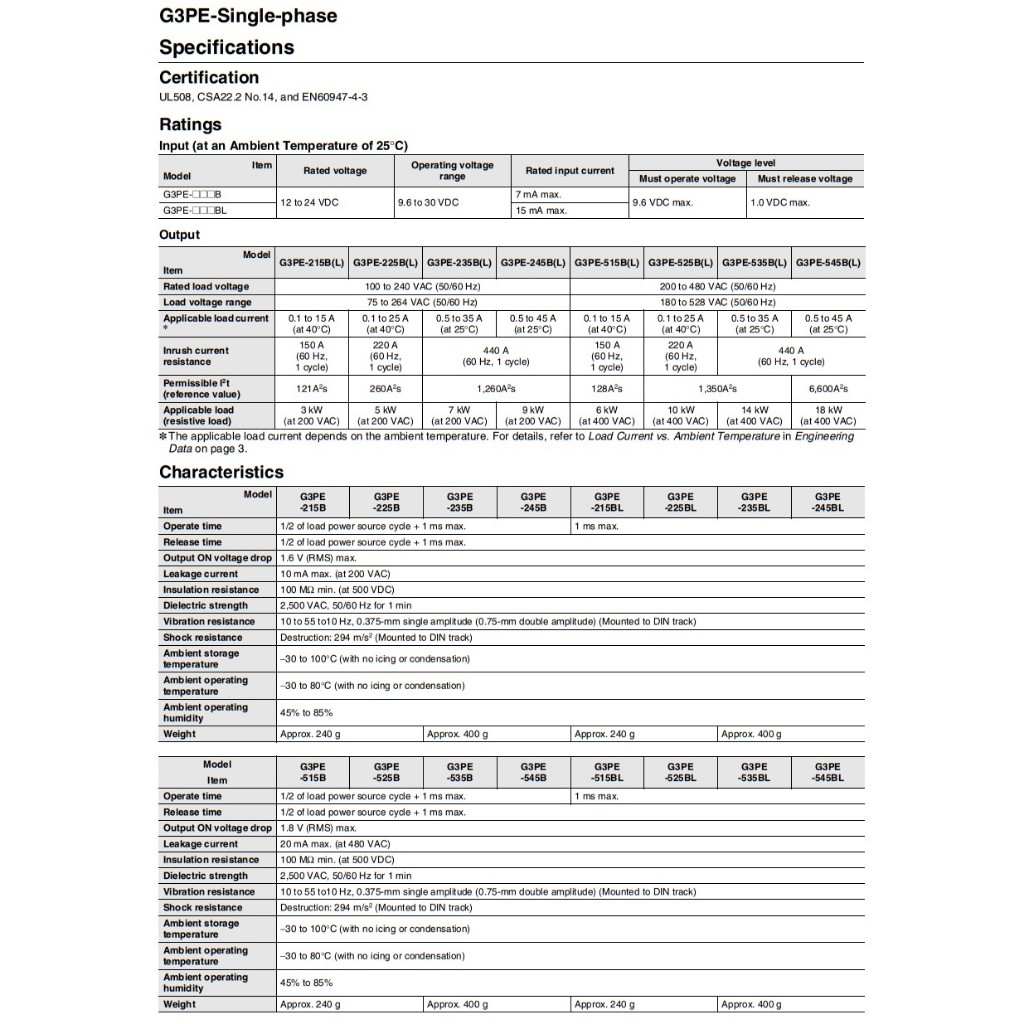

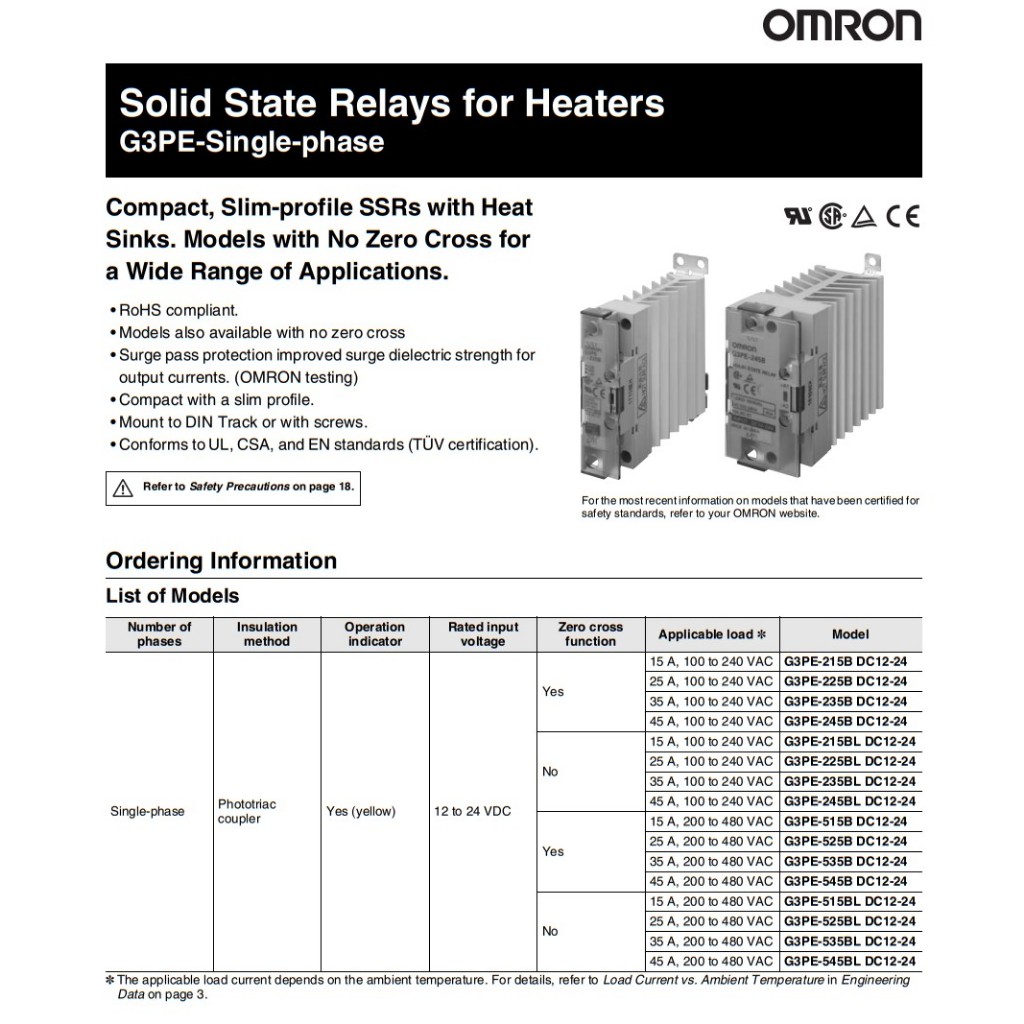

Solid state relay, 1 phase, 15A 100-240 VAC, with heat sink, DIN rail mount

Application ON/OFF control

Number of phases 1

Number of poles 1

Mounting method DIN rail/screw

Terminal type Screw

Complete with socket NO

LED indicator YES

Rated operational voltage, AC 100-240 V

Operating voltage range, AC 75-264 V

Rated operation current Ie at AC-1 15 A

Permissible I²t value 121 A²s

Applicable heater capacity (AC1: resistive load) 3 kW

Product Height (unpacked) 100 mm

Product Width (unpacked) 22.5 mm

Product Depth (unpacked) 100 mm

Supply voltage DC 12-24 V

Control current max. 10 mA

Must operate voltage max. 9.6 V

Must release voltage min. 1 V

Maximum operating temperature 80 °C

Minimum operating temperature -30 °C

Isolation Phototriac

Switching at zero-crossing YES

Communication port(s) None
