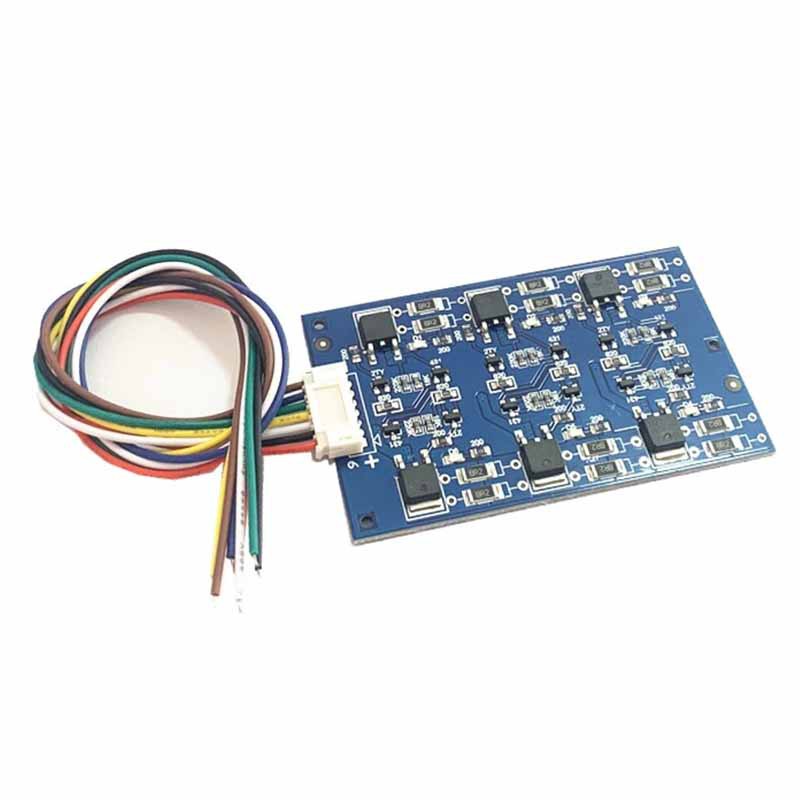

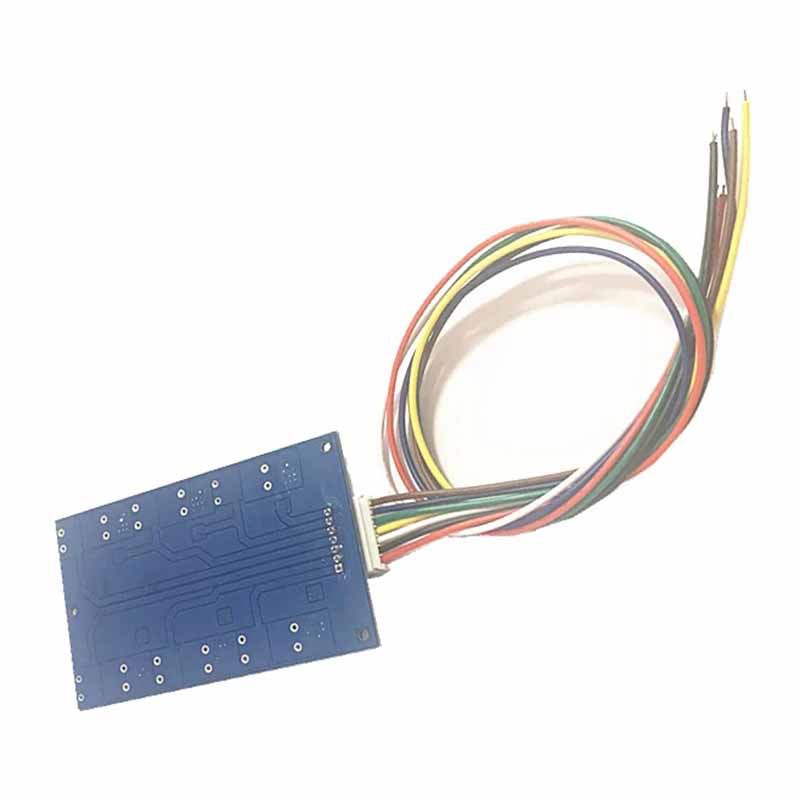

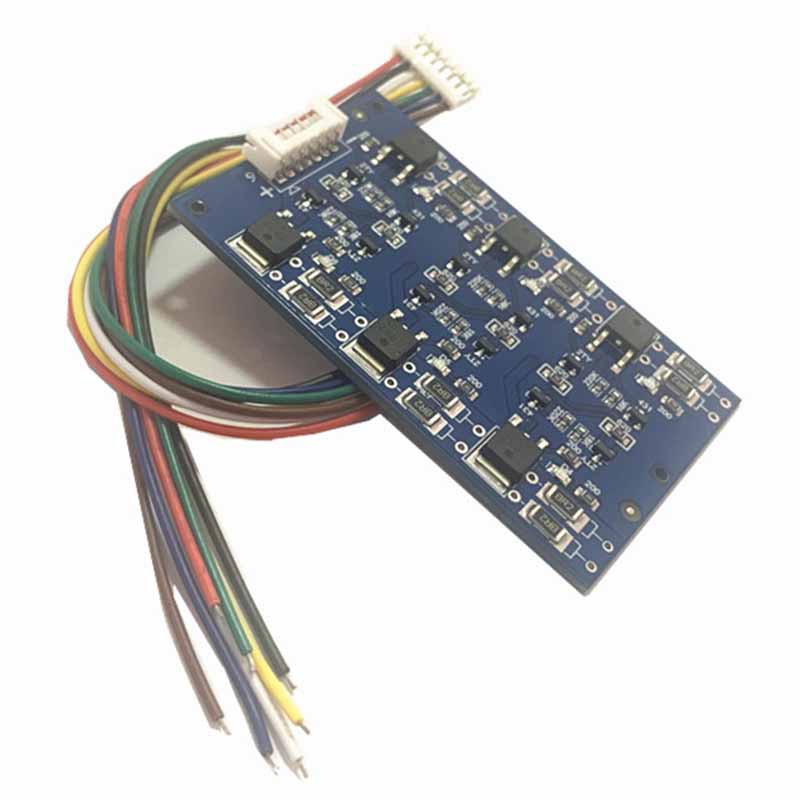

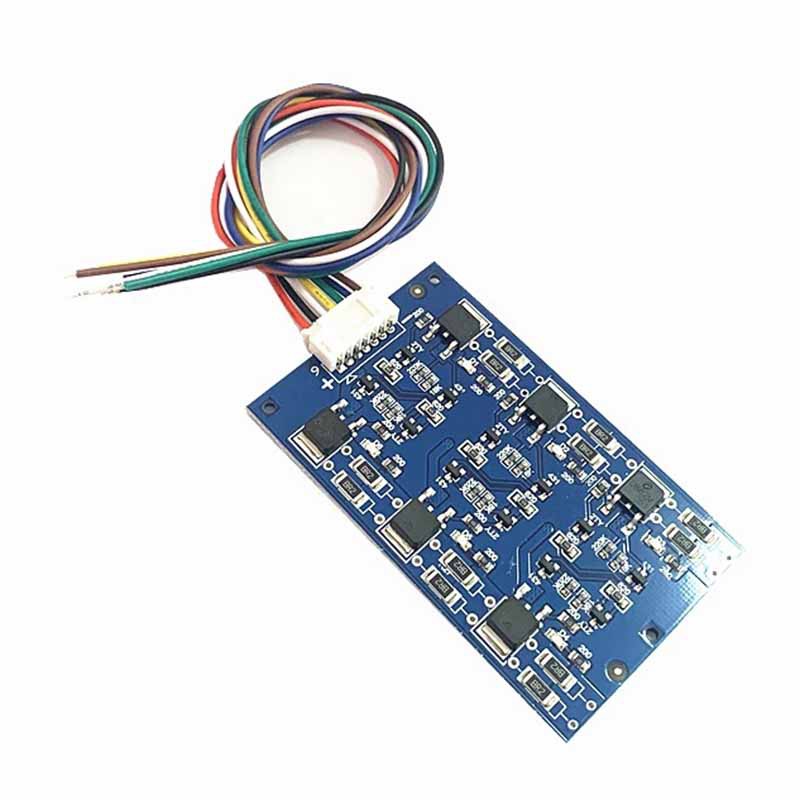

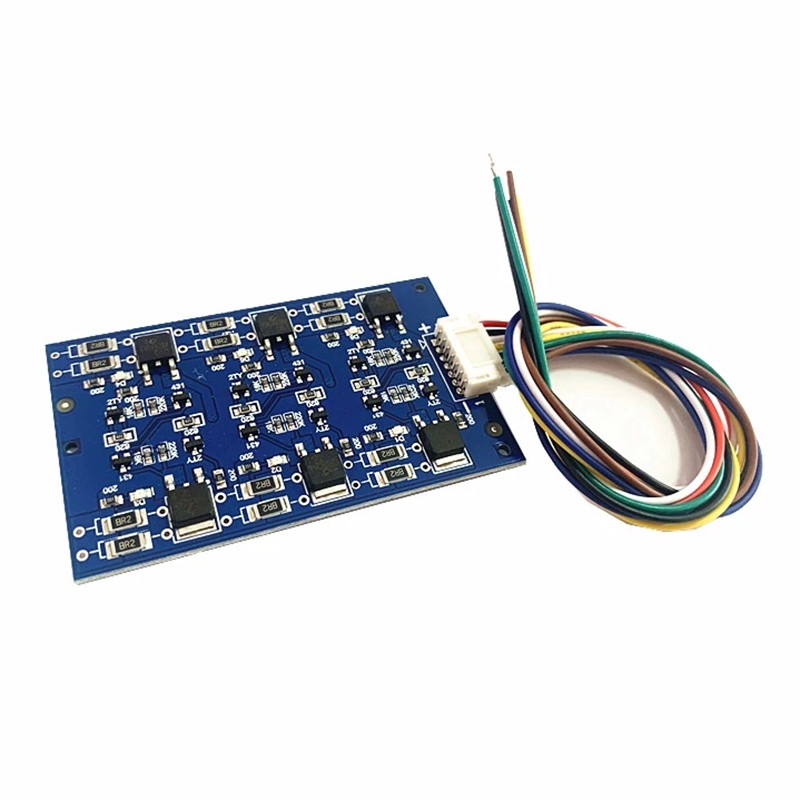

1PCS 2.7V/16V LTO 6S Balance Board Equalization Circuit Lithium Titanate Battery/Super Farad Capacitor Protection Board

"Balance Mode:Passive Balance

Balance Votage:2.7V

Balance current:0.7A

Quiescent current:60uA

Charge current:NO Limit

Discharge Current:No Limit

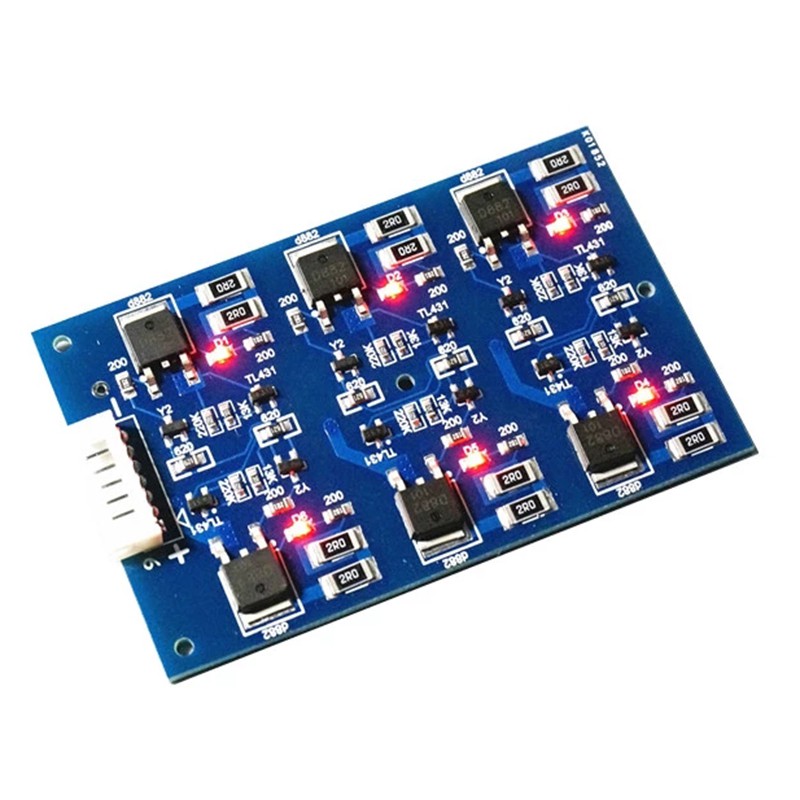

This protection board can protect farad capacitors and lithium titanate batteries, and is suitable for 2.7V voltage farad capacitors and lithium titanate batteries. The protection voltage can be fine-tuned within the range of 2.5V-3V by replacing the voltage divider resistor (higher equalization voltage Need to replace the high resistance power resistor). The working principle of the circuit is that when the voltage of a single battery/capacitor is higher than the equilibrium voltage, the internal circuit discharges the battery/capacitor by turning on the transistor, and the excess power is dissipated as heat through the power resistor. The circuit equalization voltage accuracy ± 1%.

Q&A:

1. Which batteries/capacitors can be protected by this protection board, and what is the protection voltage and discharge current?

This protection boar...
