🇹🇭3S/4S 40A 60A Li-ion Lithium Battery Charger Protection Board 18650 BMS For Drill Motor 11.1V 12.6V/14.8V

Name: 🇹🇭3S/4S 40A 60A Li-ion Lithium Battery Charger Protection Board 18650 BMS For Drill Motor 11.1V 12.6V/14.8V
Brand: Shope e
SKU: 24109769744
Price: 55.0 THB
Availability: InStock
Rating: 3.7 (1 reviews)

3.7

ขายแล้ว 1 ชิ้น

ราคาพิเศษบน Shopee

฿55

🔥 การันตีราคาคุ้มค่า

🏬

ร้านค้าผู้จัดจำหน่าย

Shope e

ช้อปมั่นใจ ปลอดภัย

สั่งซื้อสินค้านี้บน Shopee

รายละเอียดสินค้า

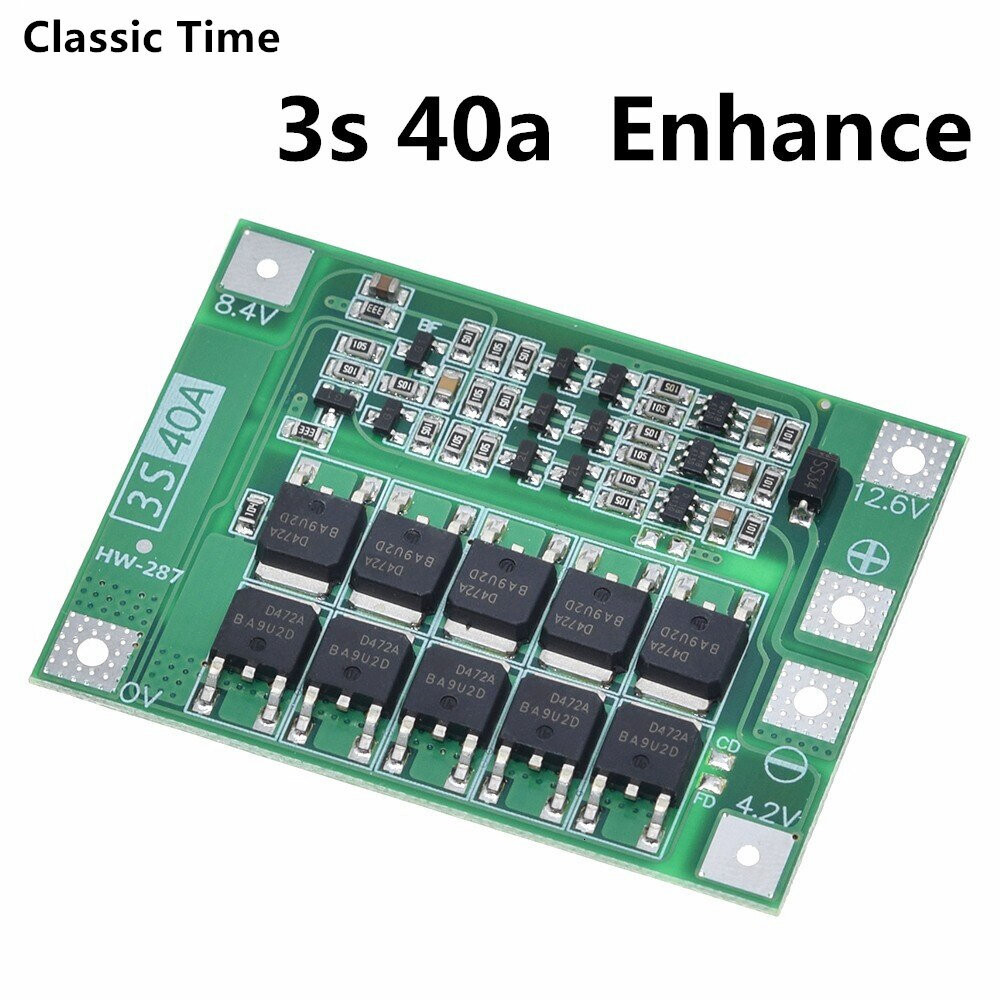

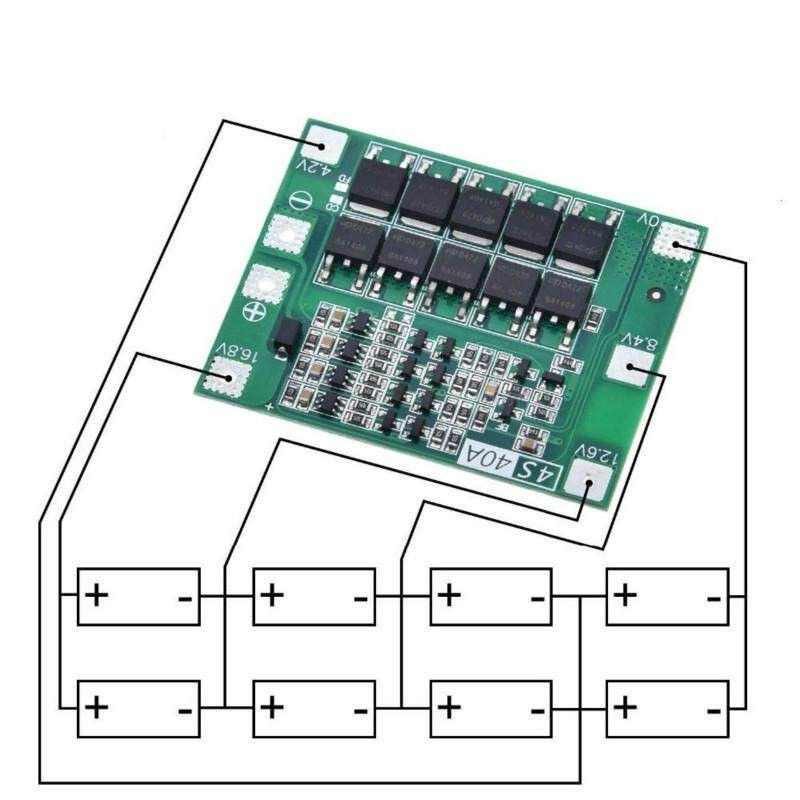

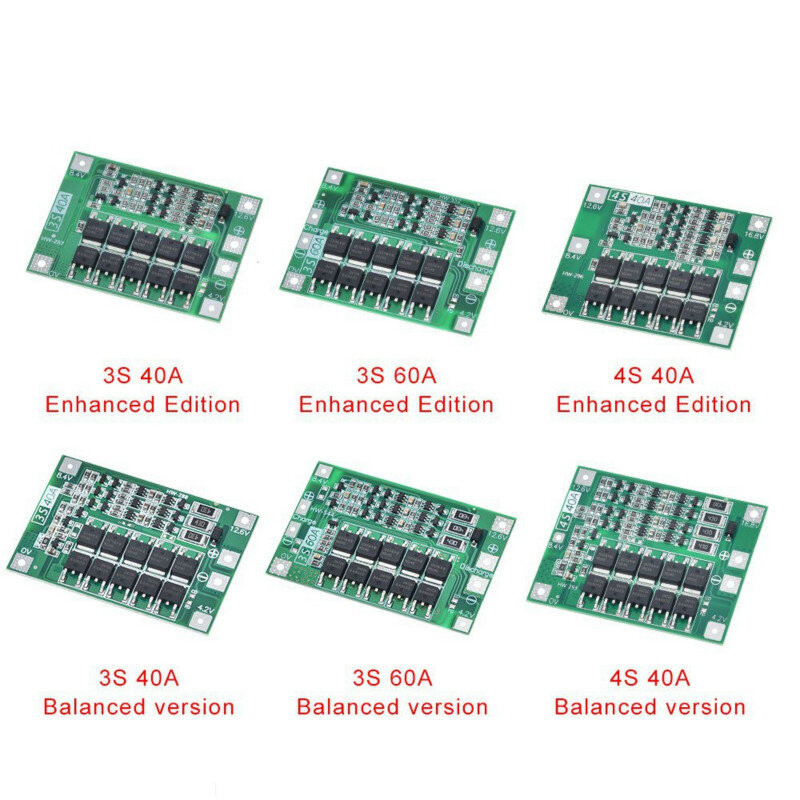

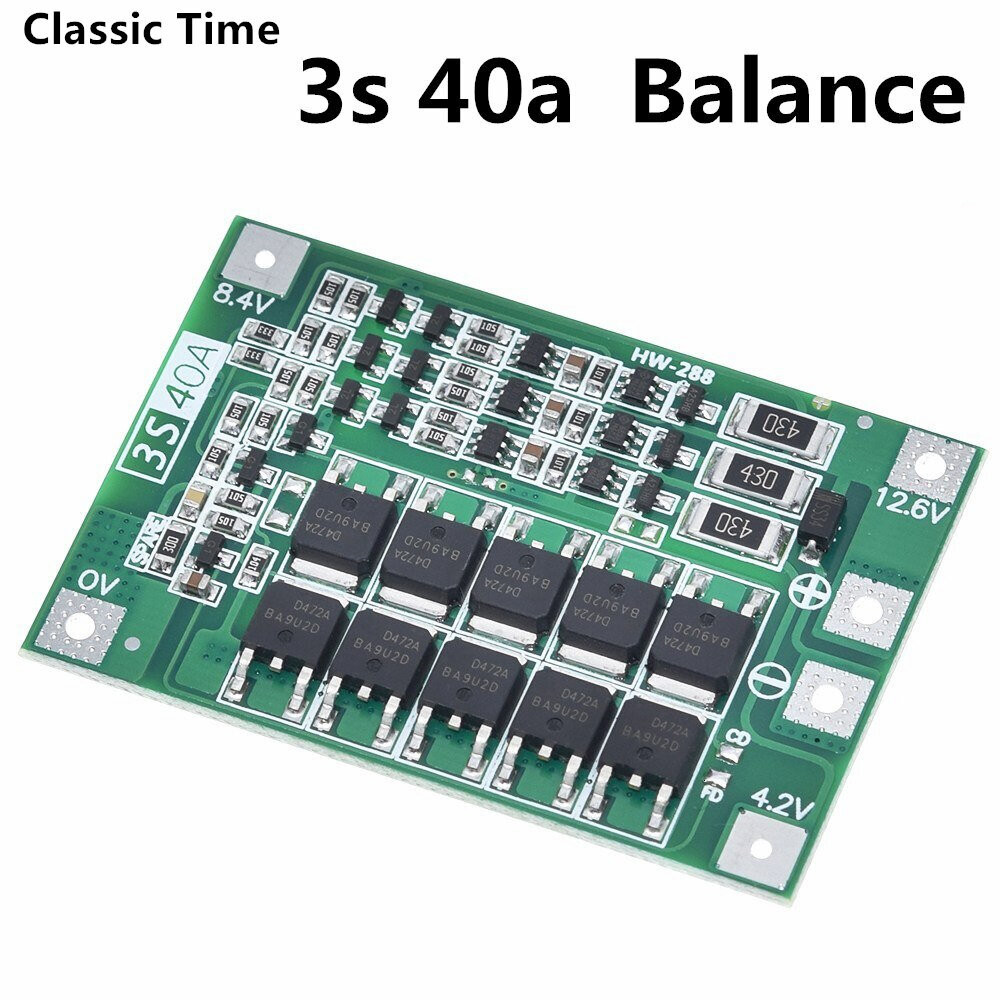

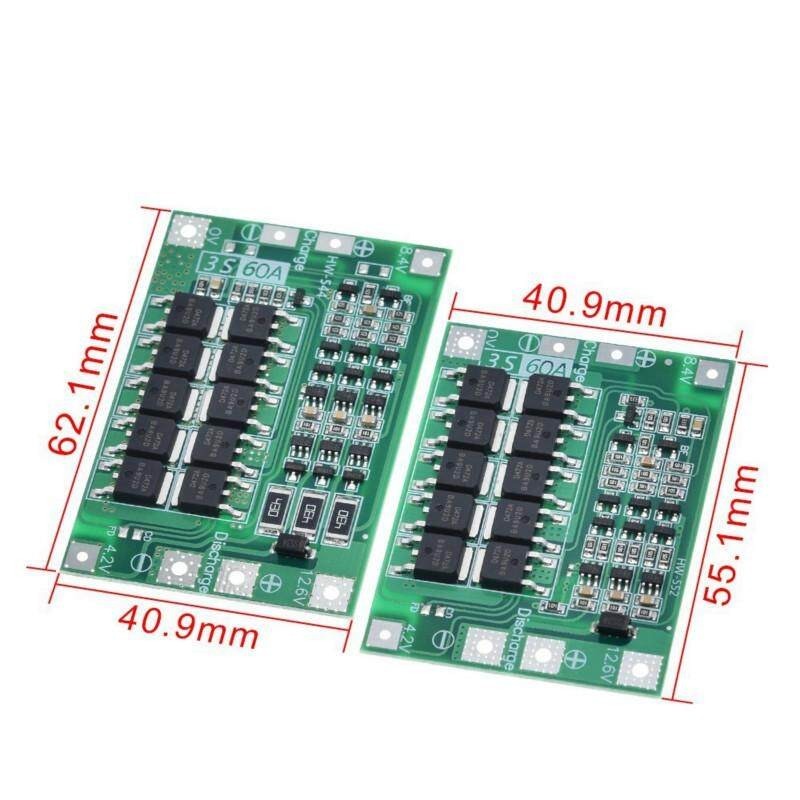

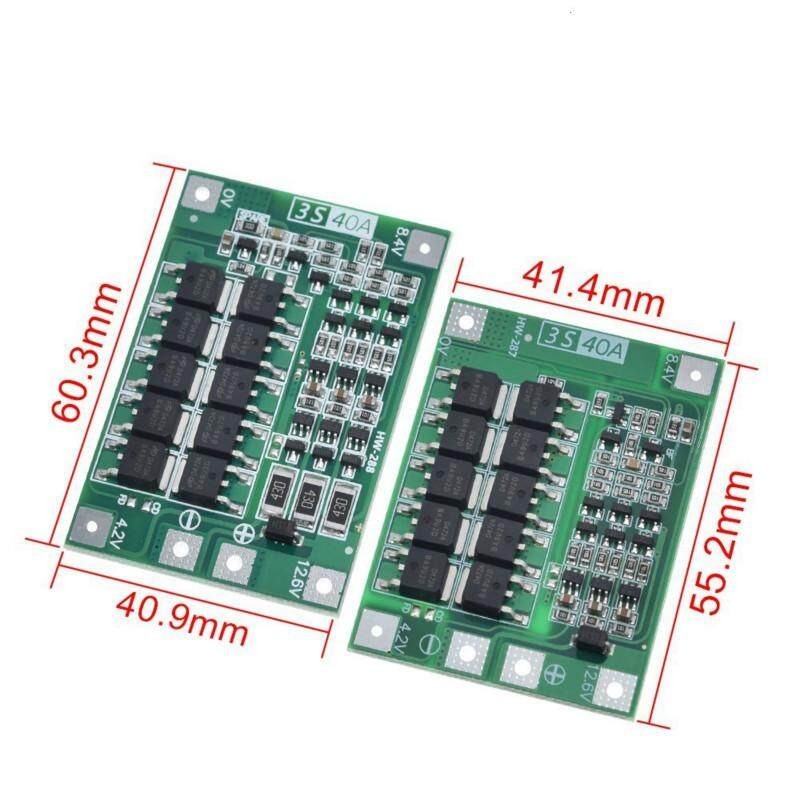

[ส่งด่วนในไทย]Introduction Product Name: 3 string 12.6V 40A lithium battery protection board Charging voltage: DC 12.6V~13.6VContinuous discharge current: 40A maximum (if the heat dissipation environment is not good, please reduce the load current)Continuous charging current: up to 20ABalance Version Product size: 41*61*4mmEnhance Version Product size: 41*55*4mmApplicable choice: applicable to the nominal voltage of 3.7V, fully charged 4.2V lithium battery (including 18650, 26650, polymer lithium battery), can be drilled below 170W Note 1: Successfully start the drill requires 3 10C-20C power batteries, or 6 5C-10C power batteries (recommended power battery models: sony vtc4, vtc4A, vtc5A, vtc6) OV and 12.6V cable, use Copper wire of 3 square millimeters or more (nickel sheets cannot be used)Note 2: Strictly connect 0V, 4.2V, 8.4V, 12.6V according to the diagram. Do not touch any components on the board when soldering the wire. Do not intentionally short circuit.Note 3: When ...
