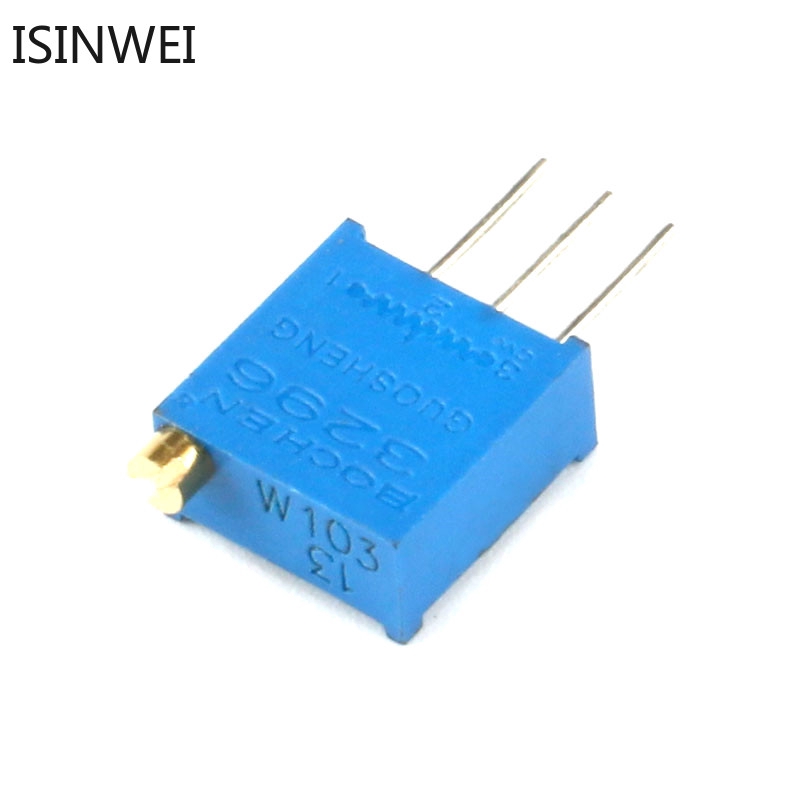

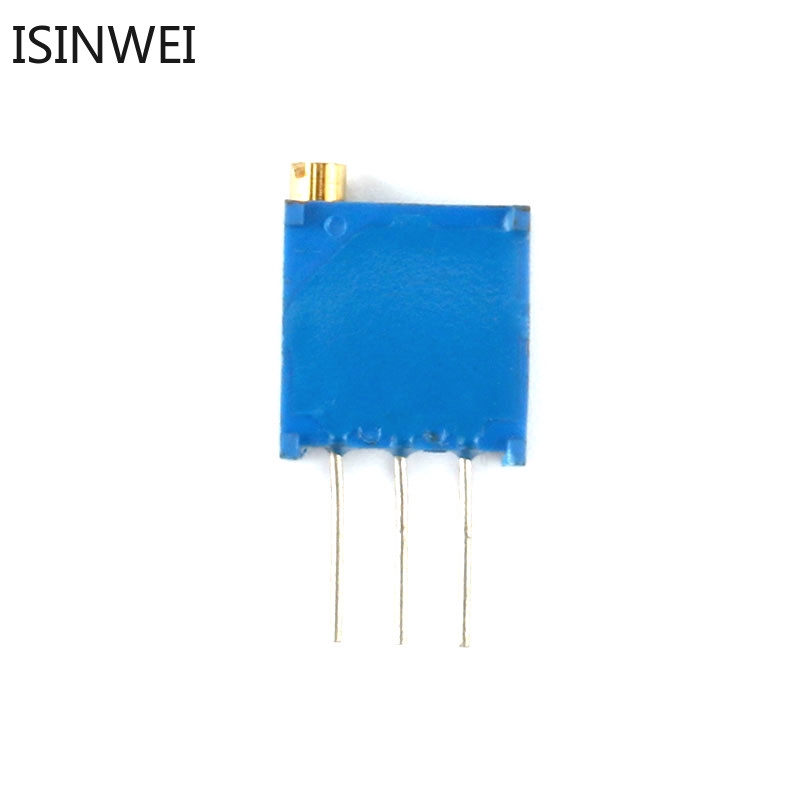

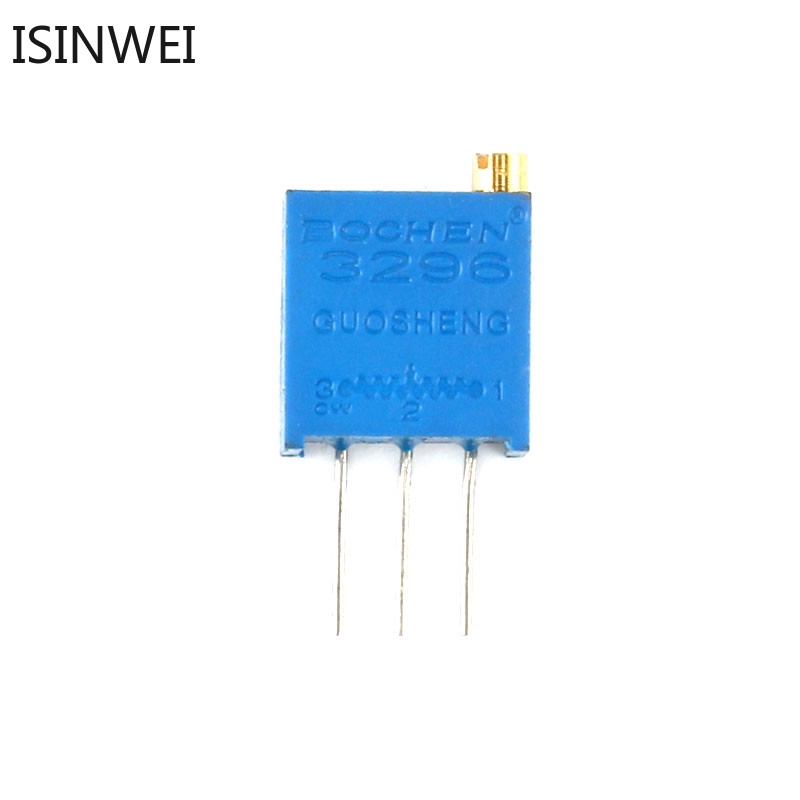

10 ชิ้น 3296 trimmer มิเตอร์ 3296 w ตัวแปรแบบปรับได้ 102 102 102 103 105 201 201 203 501

Electrical Cheracteristics

Standard resistance range: 10Ω~2MΩ

Resistance Tolerance: ±5%, ±10%

Terminal resistoance: ≤1%R or 2Ω

Contact Resistance Variation：≤3%R or 3Ω

Insulation Resistance: R1≥1GΩ

Winthstand Voltage: 101.3KPa 600V 8.5kPa 360V

Effective Electrical Travel: 30±2(cycles)

Envionment Characteristics

Rated Power: 0.5w (70 ℃); 0W (125℃)

Temperature range: -55 ℃~+125℃

Temperature Coefficent: ±250, ±100ppm/℃

Temperature Vibration: △R≤±2%R, △(Uab/Uac)≤±1%

Vibration: 390m/s2, 4000 times △R≤±1%R

Collision: 10~500HZ, 0.75mm or 95m/s2, 6h, △R≤±1%R, △(Uab/Uac)≤±2%

Climate category: △R≤±3%R, R1≥100MΩ

Electrical endurance at 70℃: 0.5W, 1000h, △R≤±3%R

Mechanical endurance: 200(cycles), △R≤±3%R

Steady Damp-heat: △R≤±3%R, R1≥100MΩ

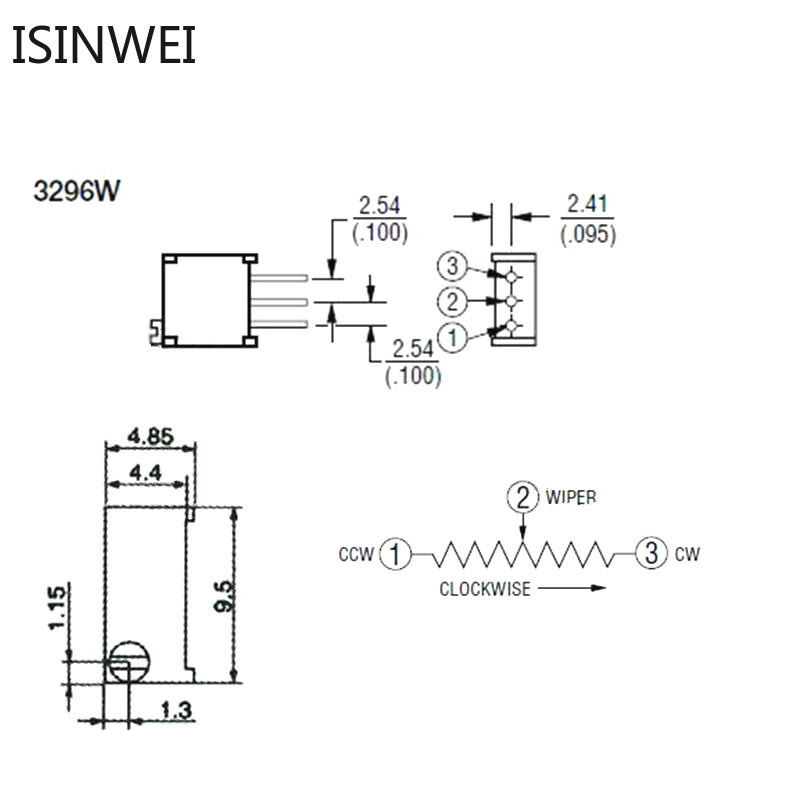

Physical Characteristics

Total Machanical travel: 30±2(cycles)

Staring Torque: ≤36mN.m

Clutch Torque: ≤36mN.m

We deal in wholesale and retail

Feel free to contact us

#3296 #3296W #Potentiometer
