โรตารี่ เอ็นโค๊ดเดอร์ 1000 พัลส์ Incremental Rotary Encoder 1000 pulse # LPD3806-1000BM-G5-24C

โรตารี่ เอ็นโค๊ดเดอร์ 1000 พัลส์

Incremental Rotary Encoder 1000 pulse

LPD3806-1000BM-G5-24C

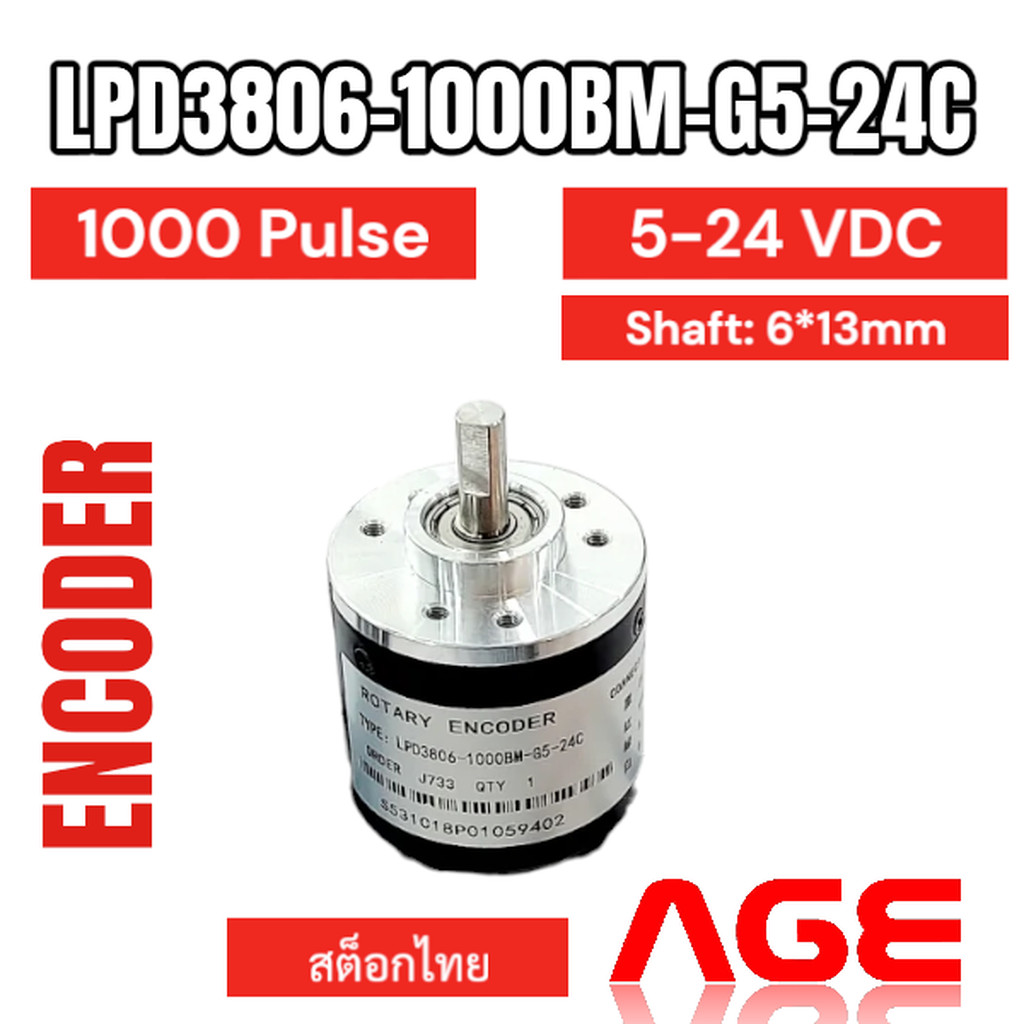

Feature:

AB two-phase incremental optical rotary encoder 1000 pulses, NPN open collector output . (We also have 360 pulses and 600 pulses in stock, including NPN open collector output and voltage output two kinds of output. If you need please leave message for which one, or we will send by default 1000 pulses and NPN open collector output ).

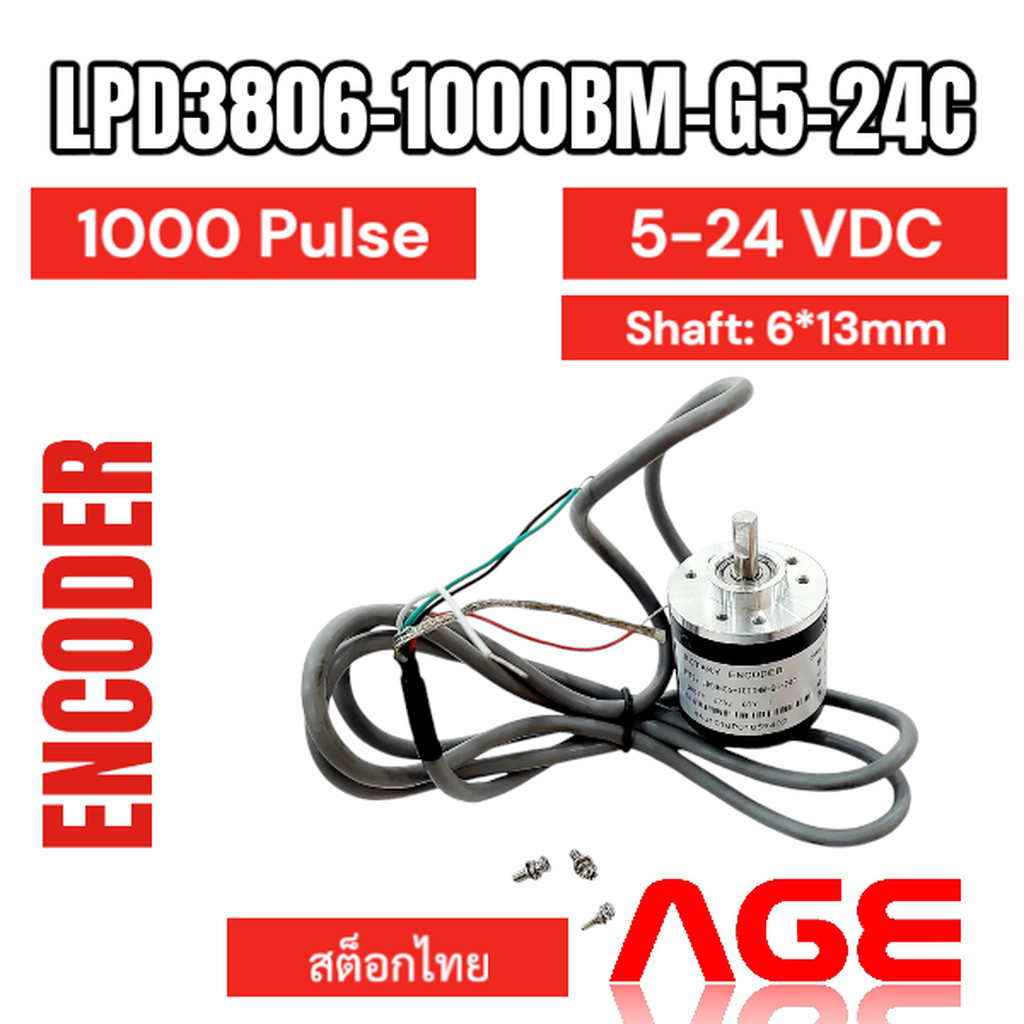

Standard with 1.5 m cable

Performance: 1000 pulses / rev.

Operating voltage: DC5-24V

Maximum mechanical speed: 1000 rev / min

The electrical response frequency: 20K / sec

Size: Encoder body size: 38mm; shaft 6 13mm; axis platform: High 5mm, 20mm;

fixing holes for: M3 screws

Three mounting holes on the circle 30, and the other three mounting holes on the 28 circle ; side qualify.

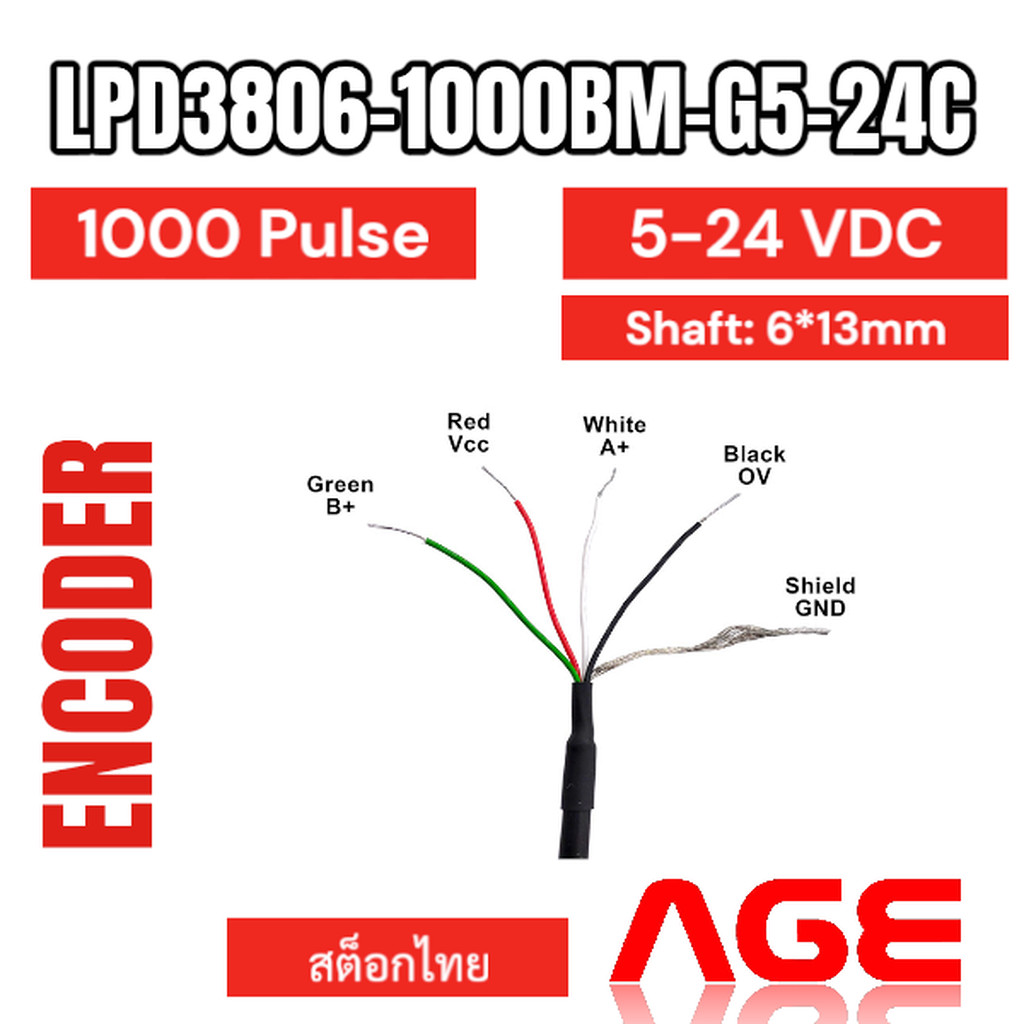

How to connection:

Green(绿） = A phase

White（白） = B phase

Red（红） = VCC positive supply

Black（黑） = GND
