2N4401 2N4403 Transistor ทรานซิสเตอร์ (ราคาต่อ 1 ตัว)
รายละเอียดสินค้า

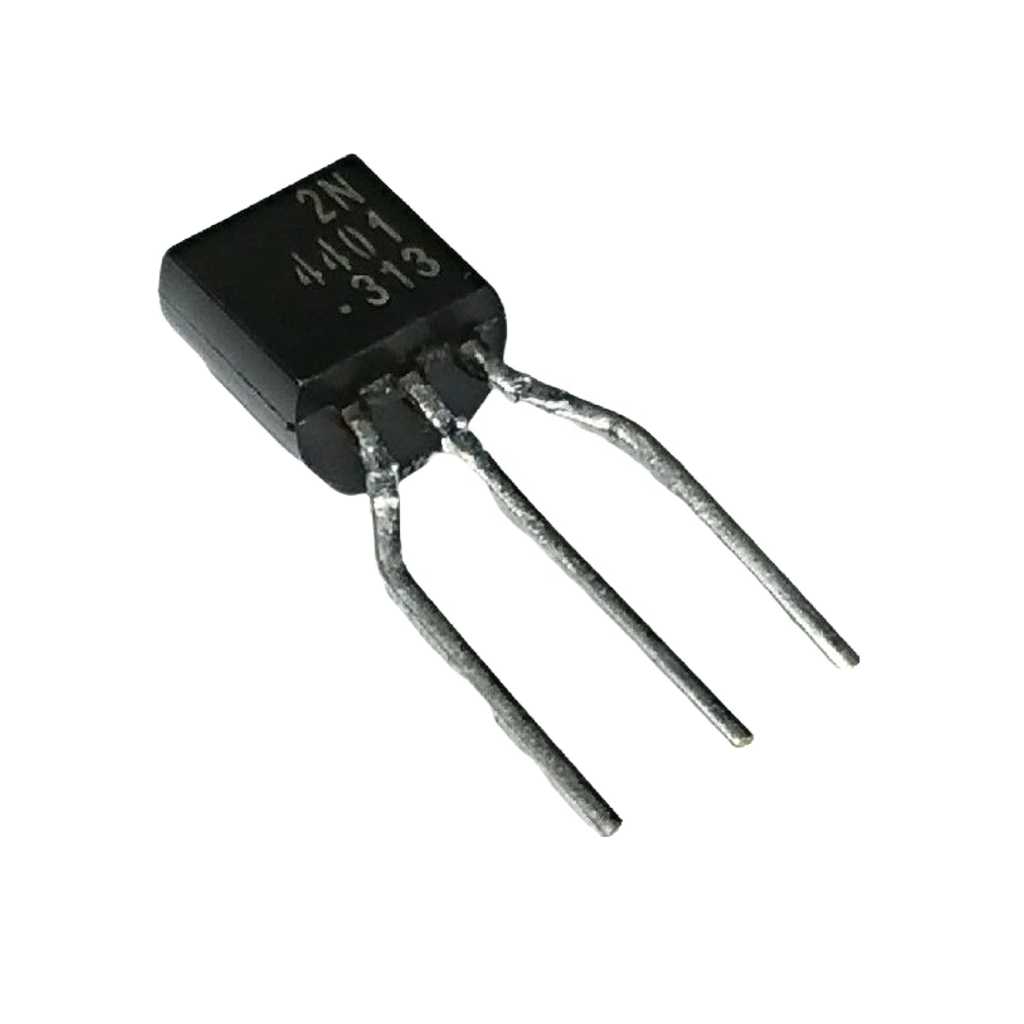

Type Designator: 2N4401
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 0.31 W
Maximum Collector-Base Voltage |Vcb|: 60 V
Maximum Collector-Emitter Voltage |Vce|: 40 V
Maximum Emitter-Base Voltage |Veb|: 6 V
Maximum Collector Current |Ic max|: 0.6 A
Max. Operating Junction Temperature (Tj): 135 °C
Transition Frequency (ft): 250 MHz
Collector Capacitance (Cc): 7 pF
Forward Current Transfer Ratio (hFE), MIN: 100
Package: TO92
ชื่อสินค้า : 2N4401
รหัสสินค้า : 20320007

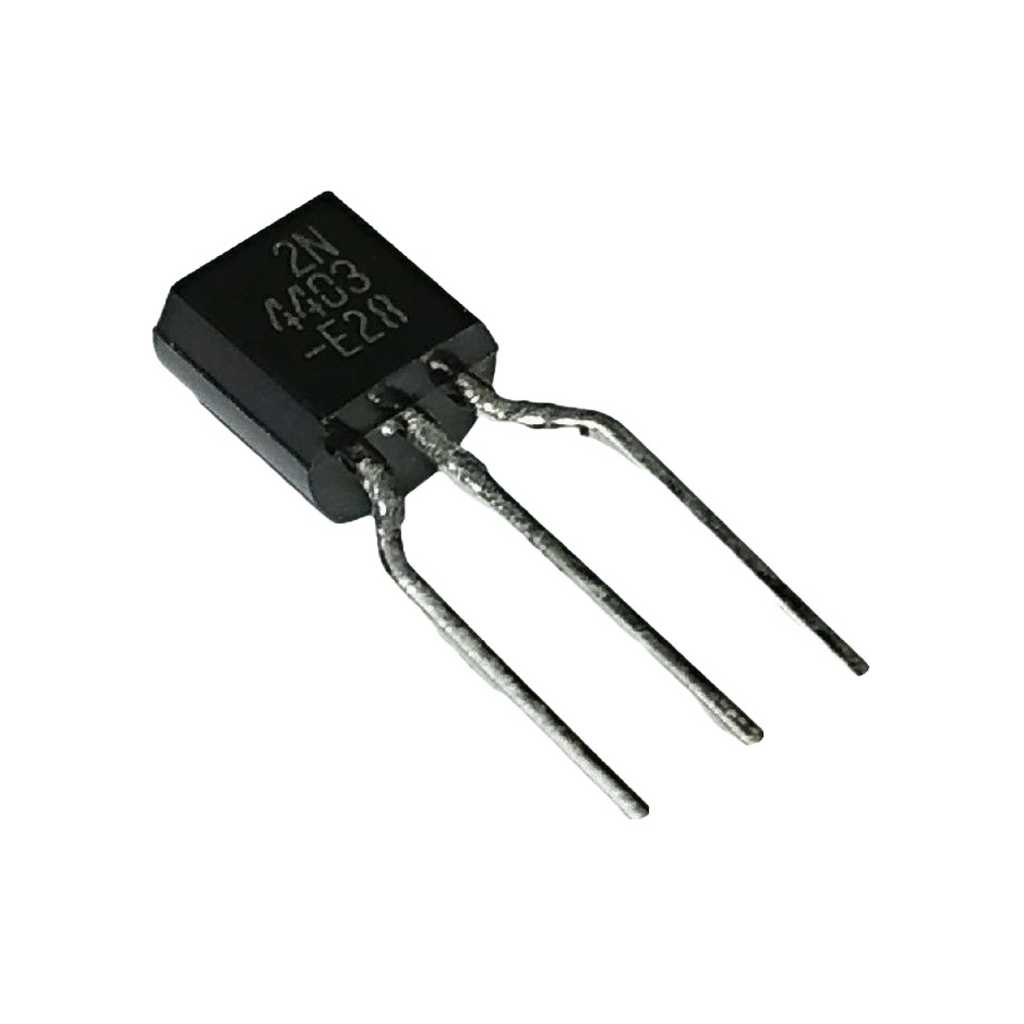

Type Designator: 2N4403
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 0.31 W
Maximum Collector-Base Voltage |Vcb|: 40 V
Maximum Collector-Emitter Voltage |Vce|: 40 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 0.6 A
Max. Operating Junction Temperature (Tj): 135 °C
Transition Frequency (ft): 200 MHz
Collector Capacitance (Cc): 9 pF
Forward Current Transfer Ratio (hFE), MIN: 100-
Package: TO92
ชื่อสินค้า : 2N4403
รหัสสินค้า...
