DANFOSS 068Z3403 Thermostatic expansion valve TES2 น้ำยา R404A/R507 เอ็กแปนชั่นวาล์ว วาล์วขยาย
รายละเอียดสินค้า
‼️กรุณาอ่านก่อนครับ‼️
💥 สินค้าของแท้ 100%💥

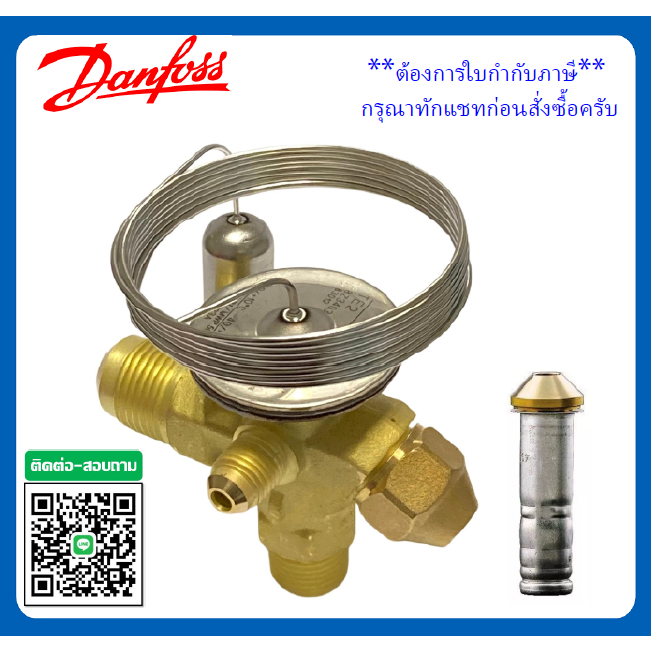

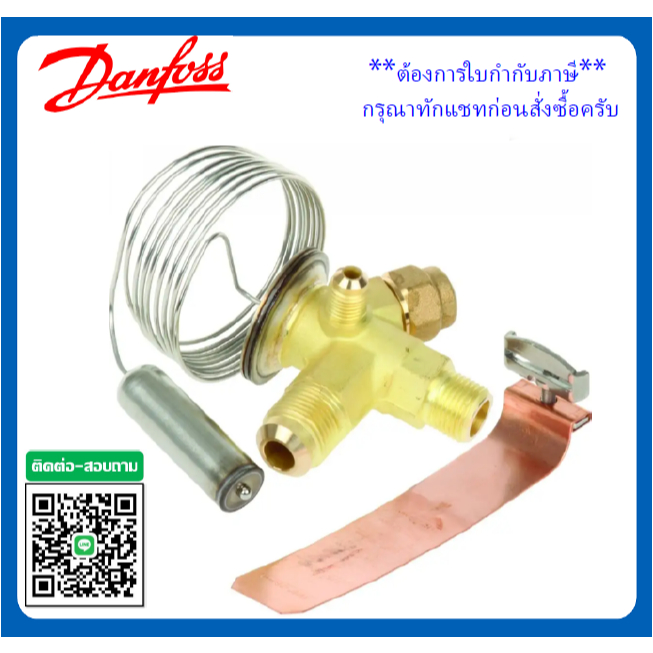

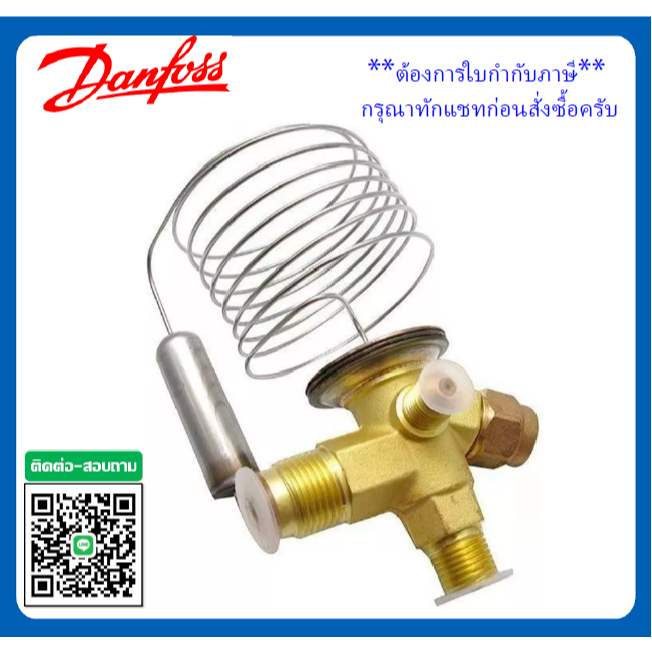

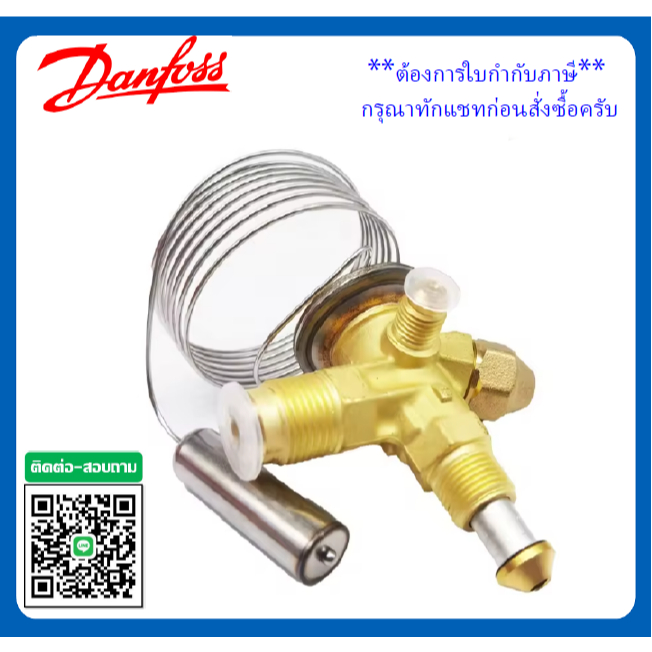

📌Product name : Thermostatic expansion valve
TYPE: TES2, R404A/R507A

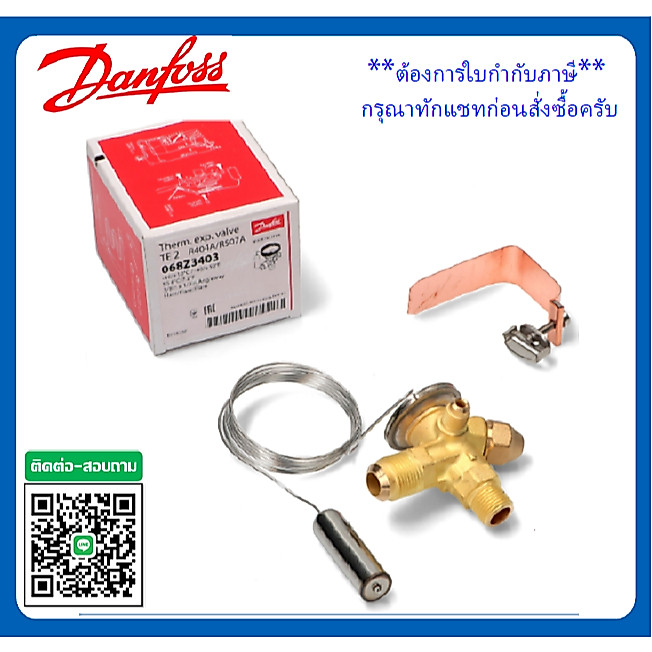

068Z3403
Temperature range [°C]: -40 - 10,
Pressure equalization: Externally equalized
Body material Brass
Capillary tube length [in] 59 in
Connection material Brass
Direction Angleway
Equalization connection type Flare
Equalization size [in] 1/4 in
Inlet connection type Flare
Inlet size [in] 3/8 in
Max. Working Pressure [bar] 34 bar
Outlet connection type Flare
Outlet size [in] 1/2 in
Parts Program name T2/TE2
Pressure equalization Externally equalized
tcond=38 ºC
tevap=4.4 ºC
tliq=37 ºC
Refrigerants R404A/R507A
Temperature range [°C] [max] 10 °C
Temperature range [°C] [min] -40 °C

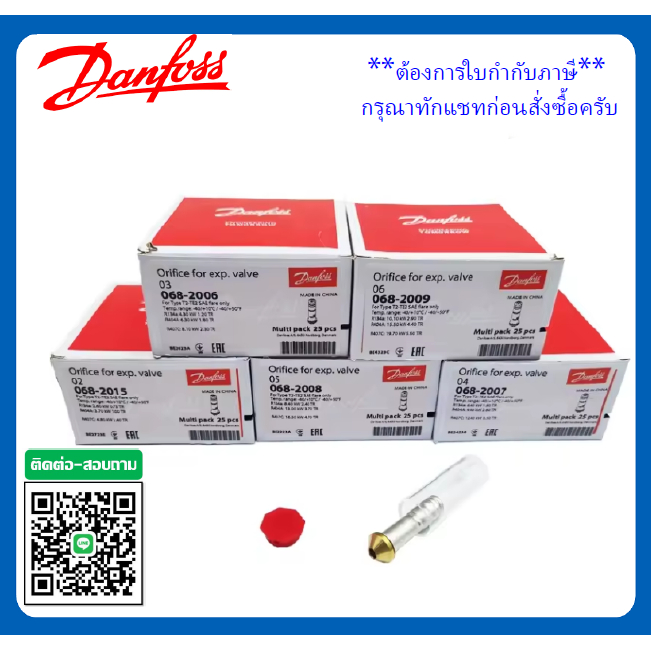

NO.0X (2,160 BTU) Code : 068-2002
NO.00 (4,440 BTU) Code : 068-2003
NO.01 (9,000 BTU) Code : 068-2010
NO.02 (12,600 BTU) Code : 068-2015
NO.03 (21,408 BTU) Code : 068-2006
NO.04 (33,960 BTU) Code : 068-2007
NO.05 (44,520 BTU) Code : 068-2008
NO.06 (53,040 BTU) Code : 068-20...
