2SA1694 2SC4467 A1694 C4467 Transistor ทรานซิสเตอร์ ยี่ห้อ Sanken (ขายเป็นคู่)
รายละเอียดสินค้า

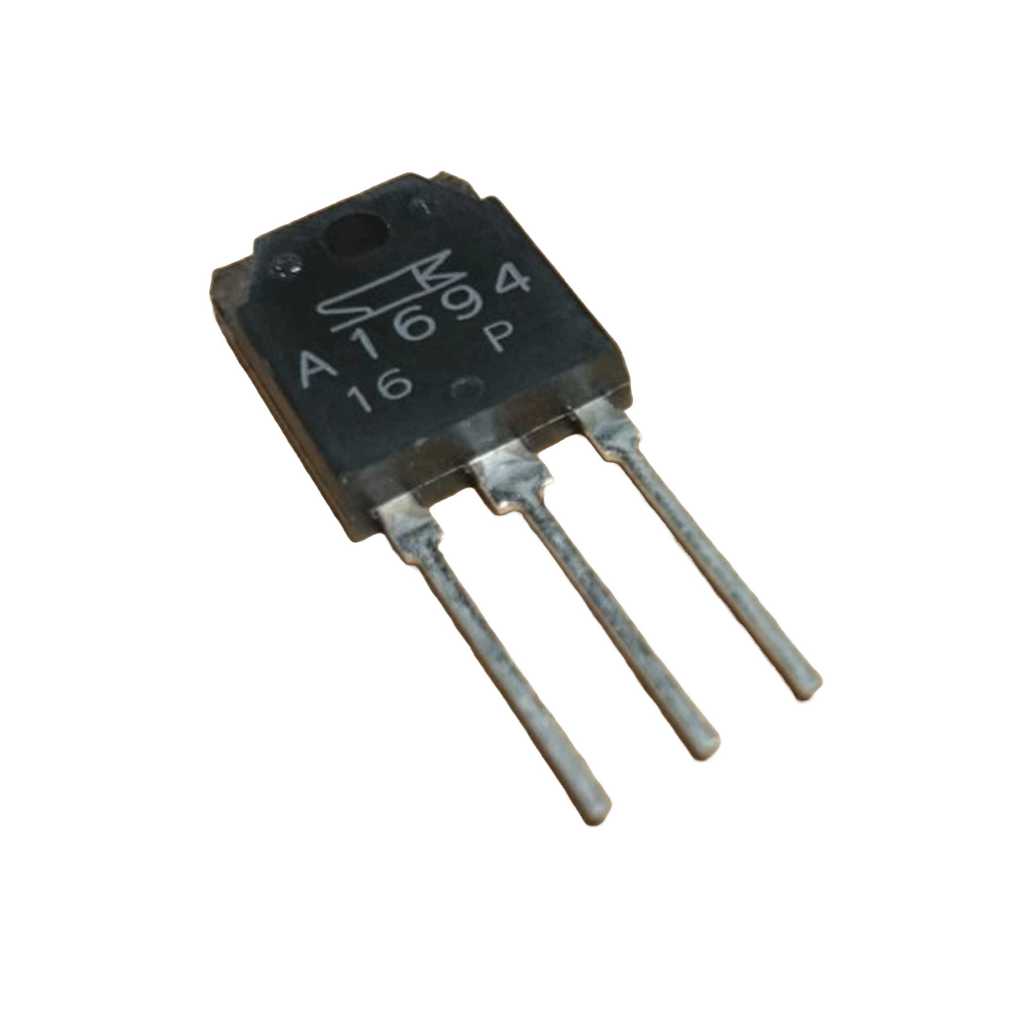

Type Designator: 2SA1694
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 80 W
Maximum Collector-Base Voltage |Vcb|: 120 V
Maximum Collector-Emitter Voltage |Vce|: 120 V
Maximum Emitter-Base Voltage |Veb|: 6 V
Maximum Collector Current |Ic max|: 8 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 20 MHz
Collector Capacitance (Cc): 300 pF
Forward Current Transfer Ratio (hFE), MIN: 50

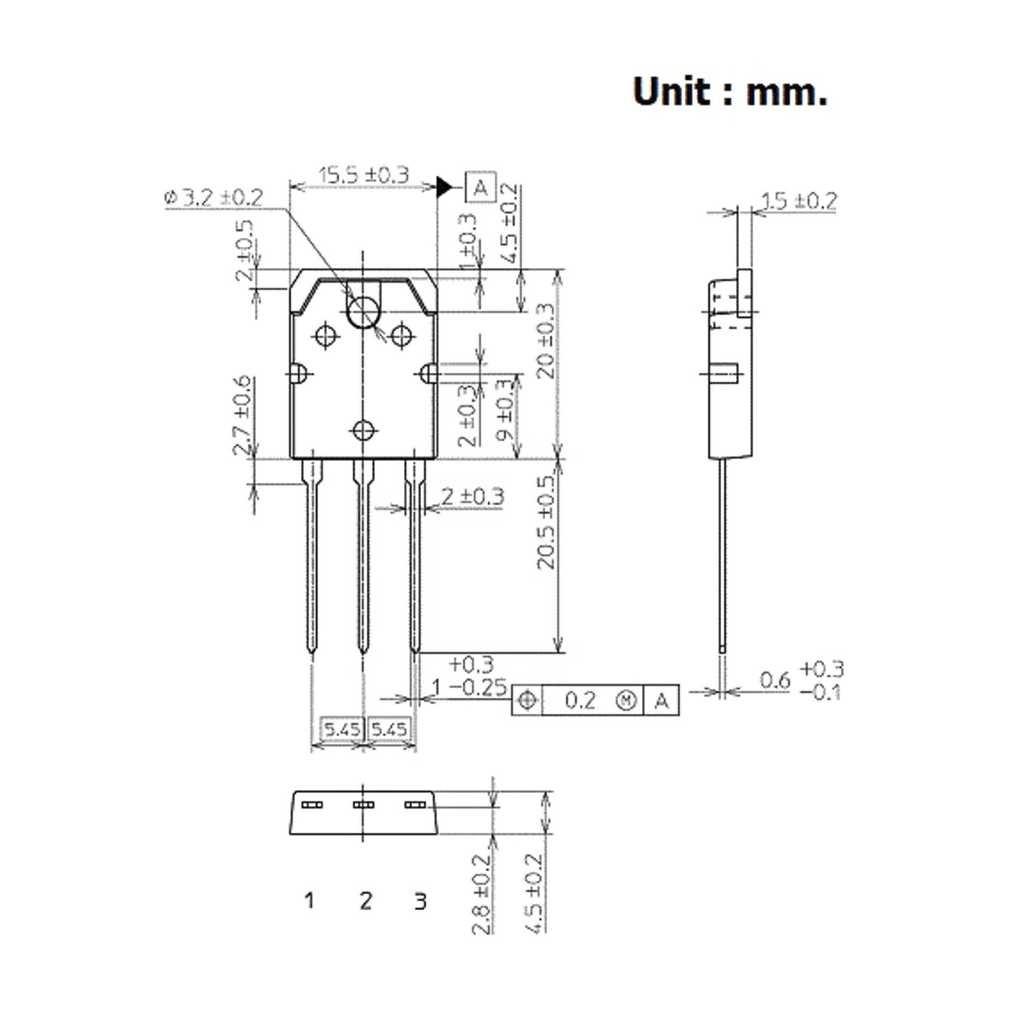

Package: TO3P

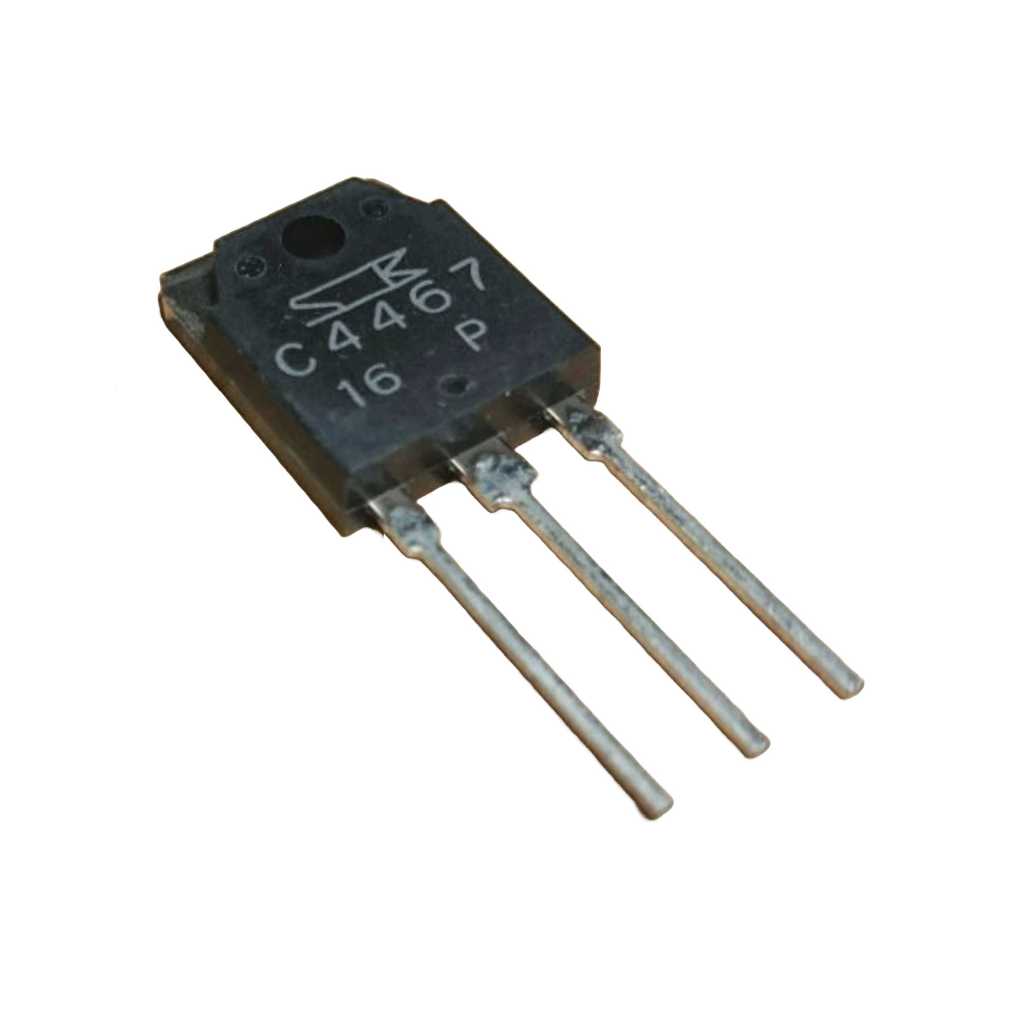

Type Designator: 2SC4467
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 80 W
Maximum Collector-Base Voltage |Vcb|: 160 V
Maximum Collector-Emitter Voltage |Vce|: 120 V
Maximum Emitter-Base Voltage |Veb|: 6 V
Maximum Collector Current |Ic max|: 8 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 20(typ) MHz
Collector Capacitance (Cc): 200 pF
Forward Current Transfer Ratio (hFE), MIN: 50
Package: TO3PN
ชื่อสินค้า : A1694+C4467
รหัสสินค้า : 20320077
📌มีสินค้าตามจำนวนที่...
