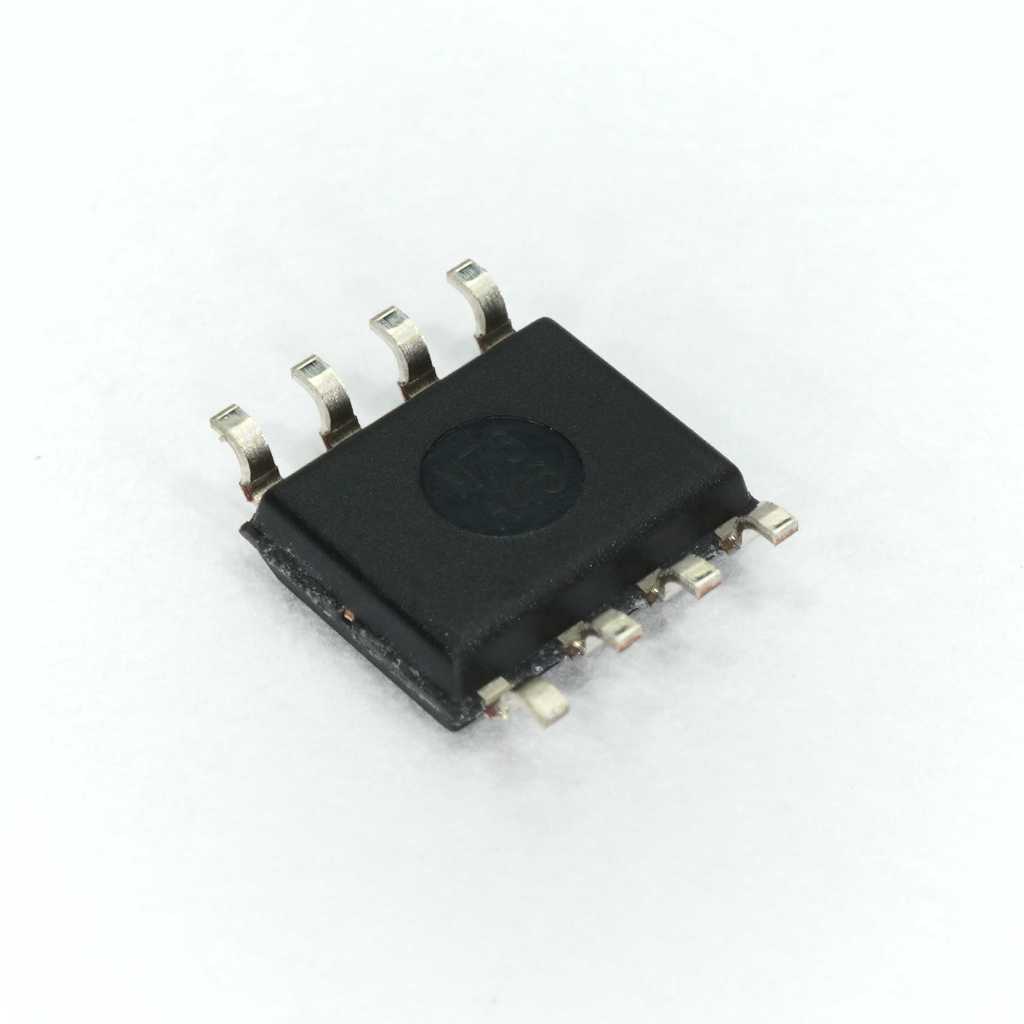

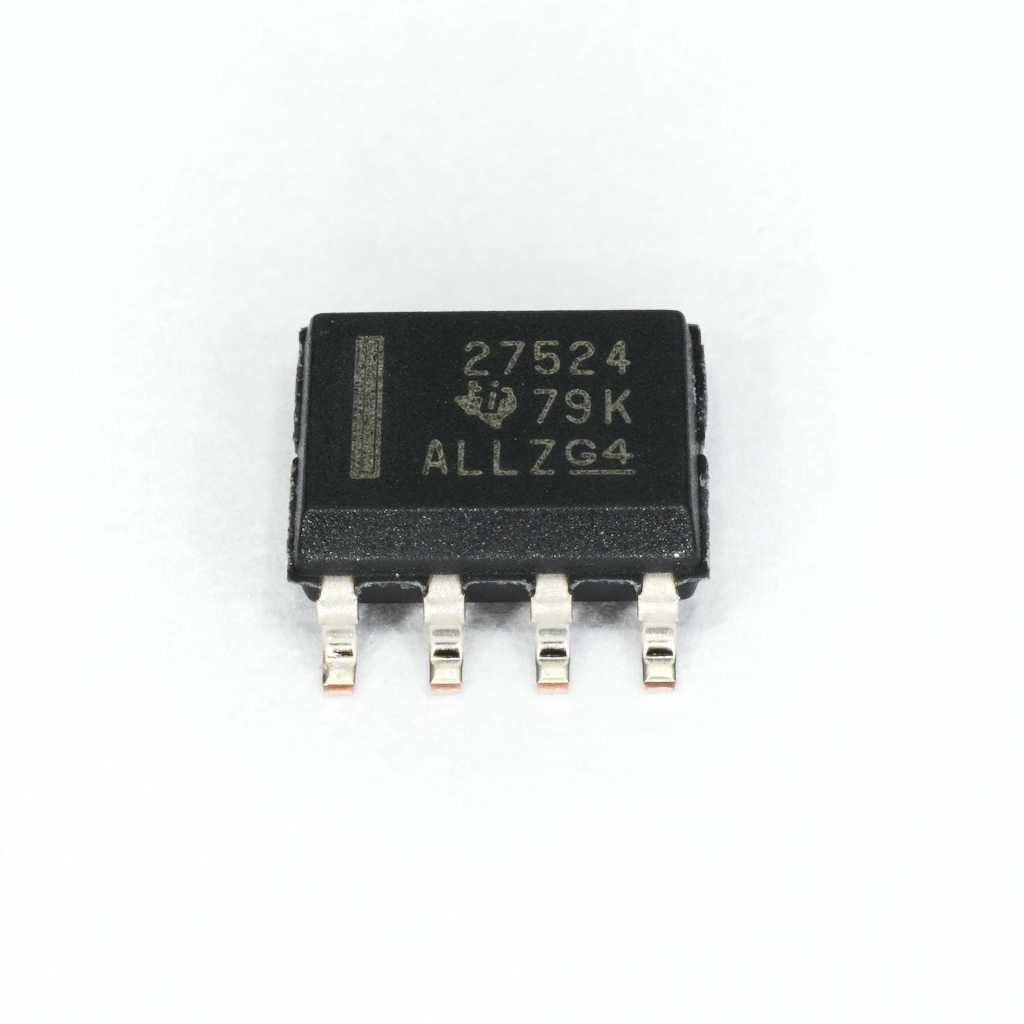

UCC27524DR 27524 SMD ไอซี IC SMD Dual 5A, High-Speed, Low-Side Gate Driver ยี่ห้อ Texas Instruments
รายละเอียดสินค้า
• Industry-standard pin out
• Two independent gate-drive channels
• 5A peak source and sink-drive current
• Independent-enable function for each output
• TTL and CMOS compatible logic threshold independent of supply voltage
• Hysteretic-logic thresholds for high noise immunity
• Ability to handle negative voltages (–5V) at inputs
• Inputs and enable pin-voltage levels not restricted by VDD pin bias supply voltage
• 4.5V to 18V single-supply range
• Outputs held low during VDD-UVLO (ensures glitch-free operation at power up and power down)
• Fast propagation delays (17ns typical)
• Fast rise and fall times (6ns and 10ns typical)
• 1ns typical delay matching between two channels
• Two outputs are paralleled for higher drive current
• Outputs held in low when inputs floating
• SOIC-8, HVSSOP-8 PowerPAD™ package options
• Operating junction temperature range of –40 to 150°C
ชื่อสินค้า : UCC27524DR
รหัสสินค้า : 09010160
📌มีสินค้าตามจำนวนที่ระบุ สามารถสั่งซื้อได้เลย
📌สามารถออกใบกำกับภาษีได้...
