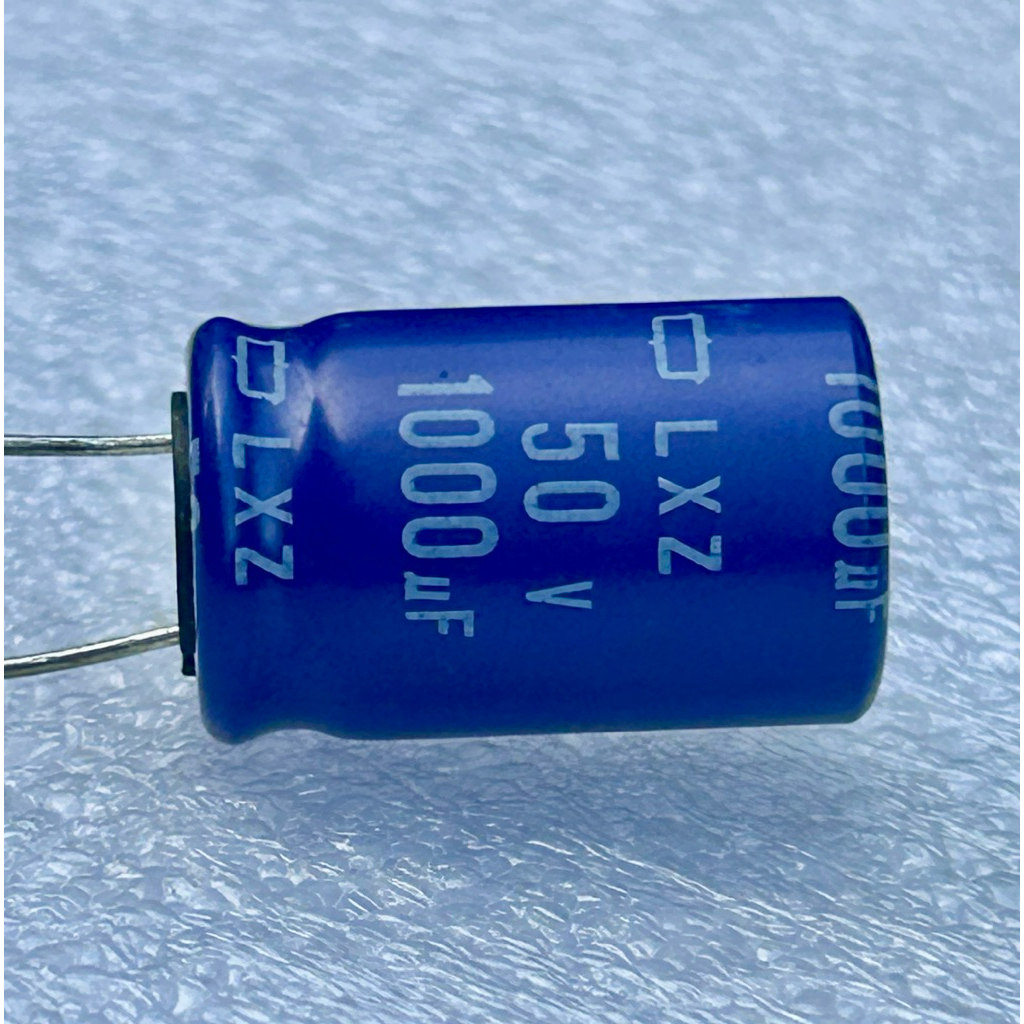

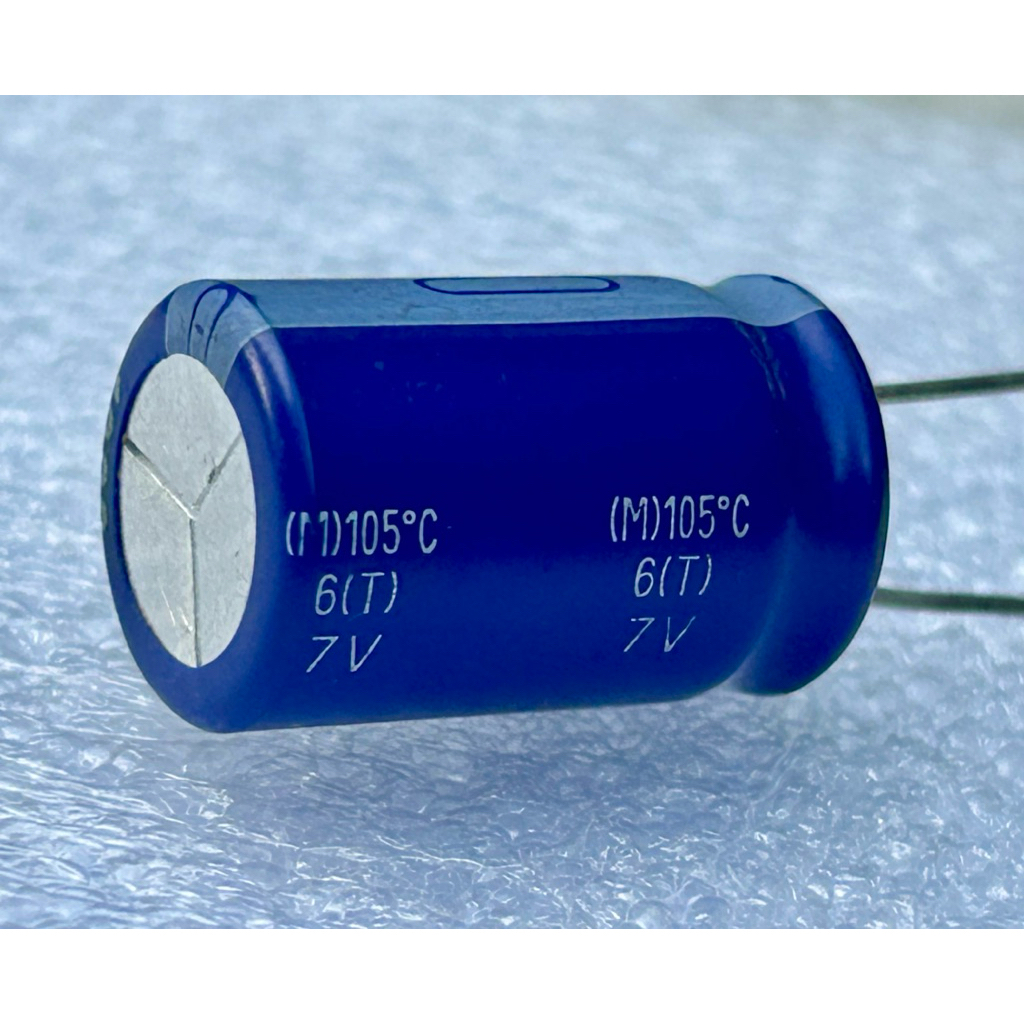

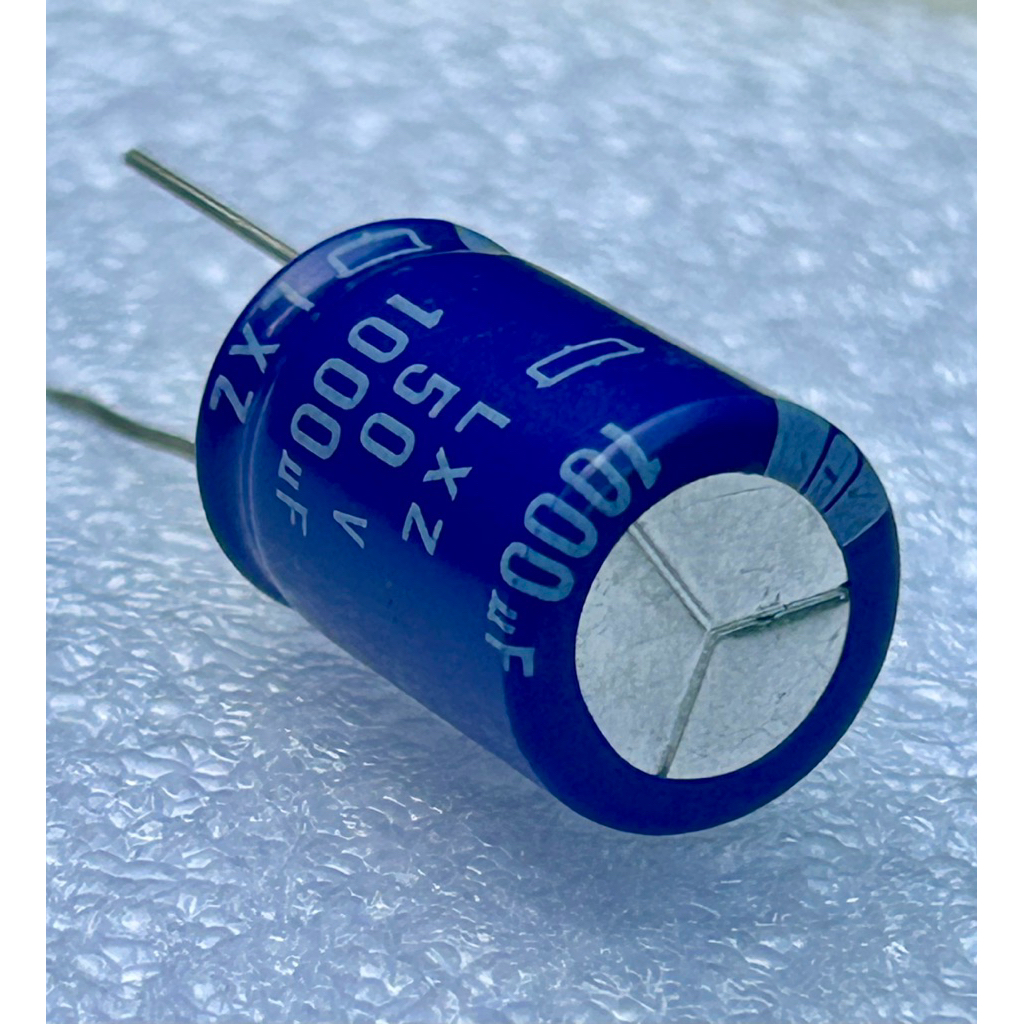

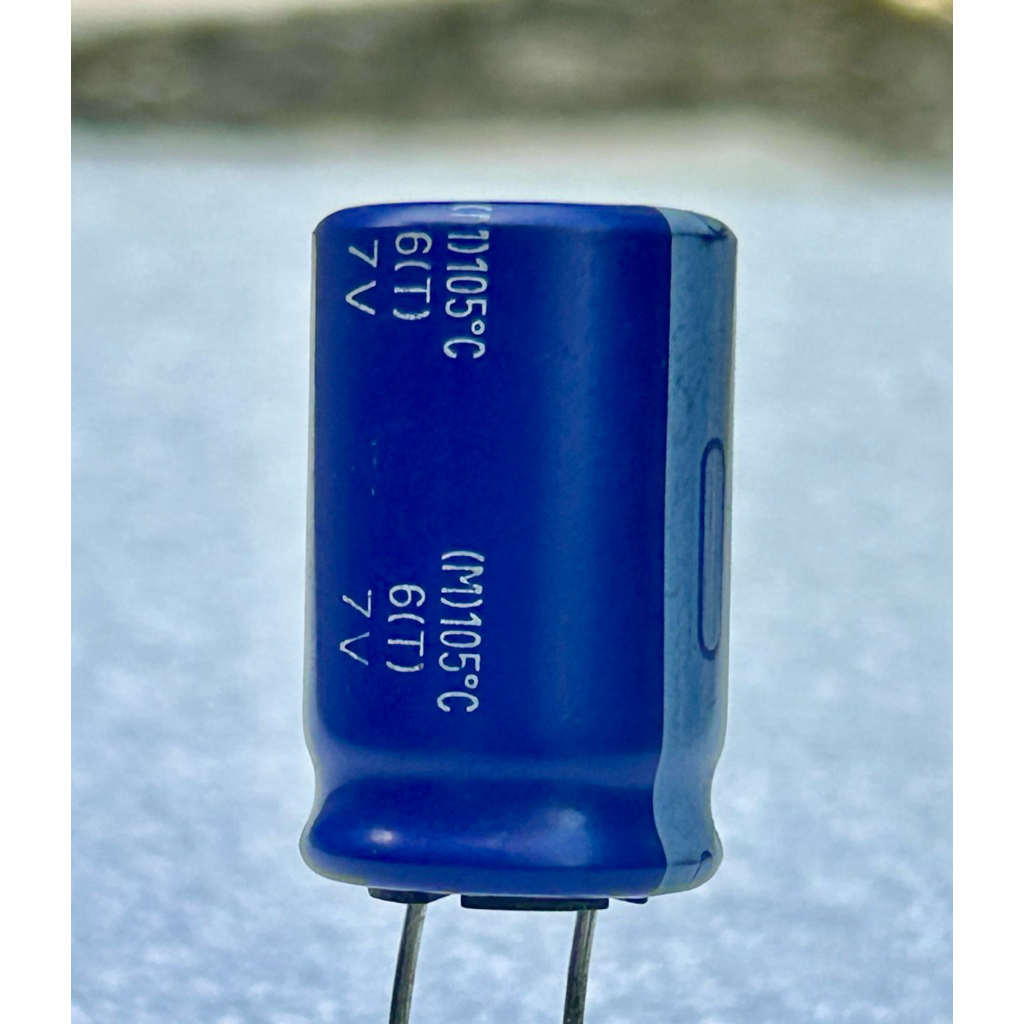

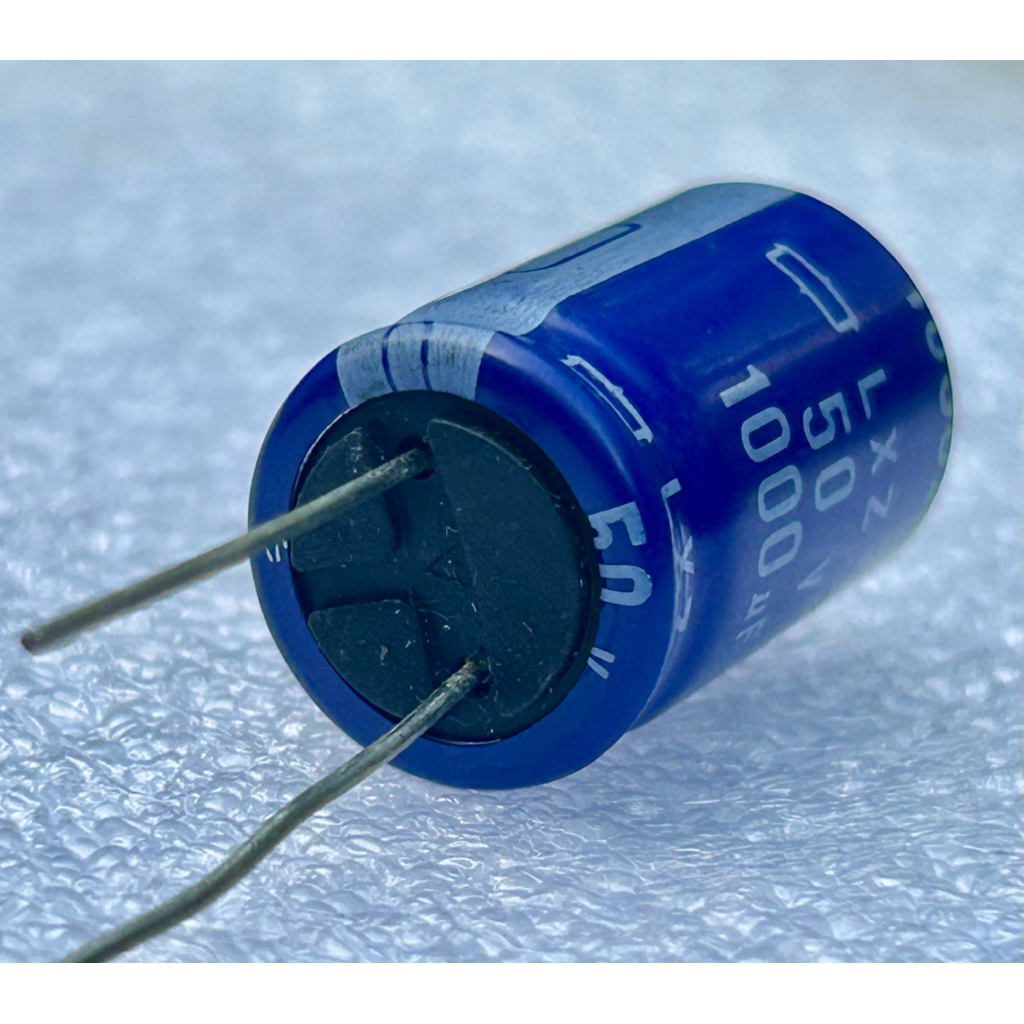

Capacitor ตัวเก็บประจุ 1000uF50V LXZ 105C (ของใหม่เก่าเก็บ) CHEMI-CON NIPPON

CHEMI-CON

NIPPON

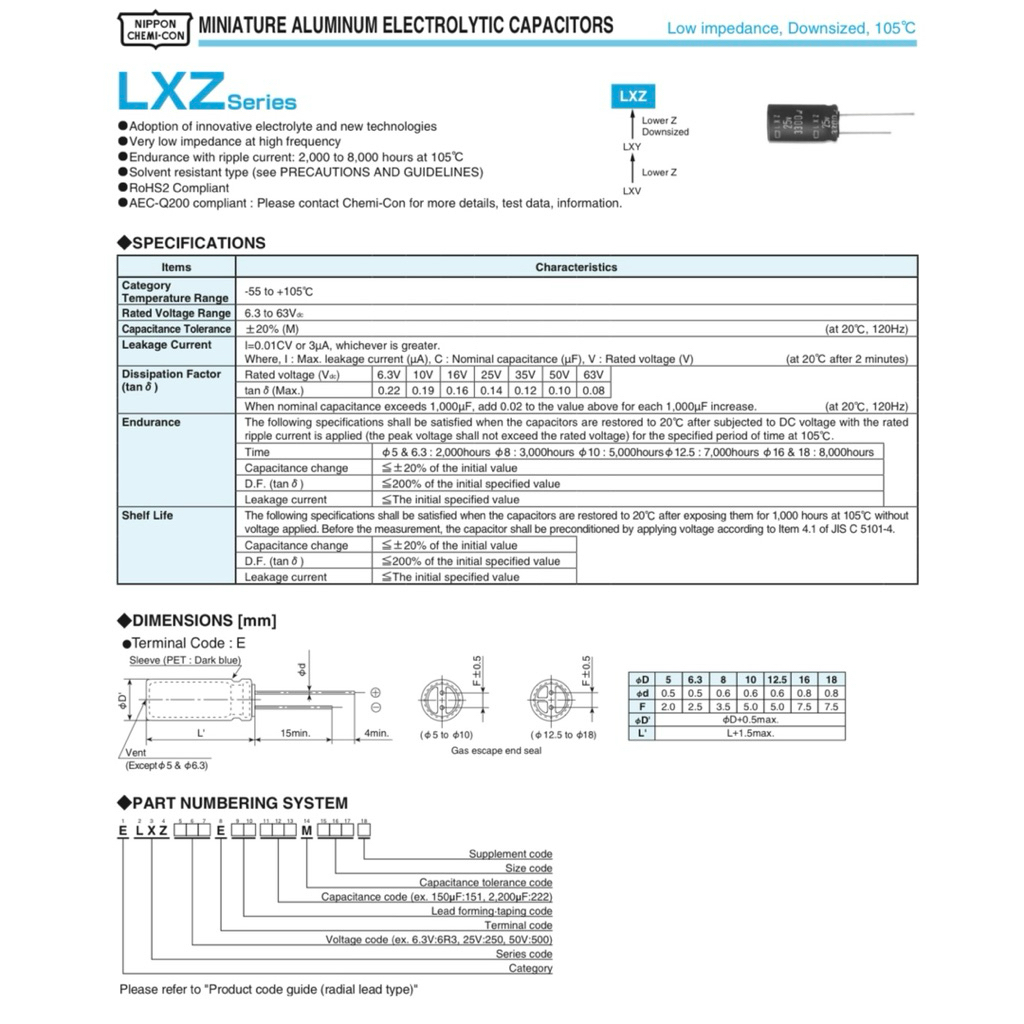

MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS

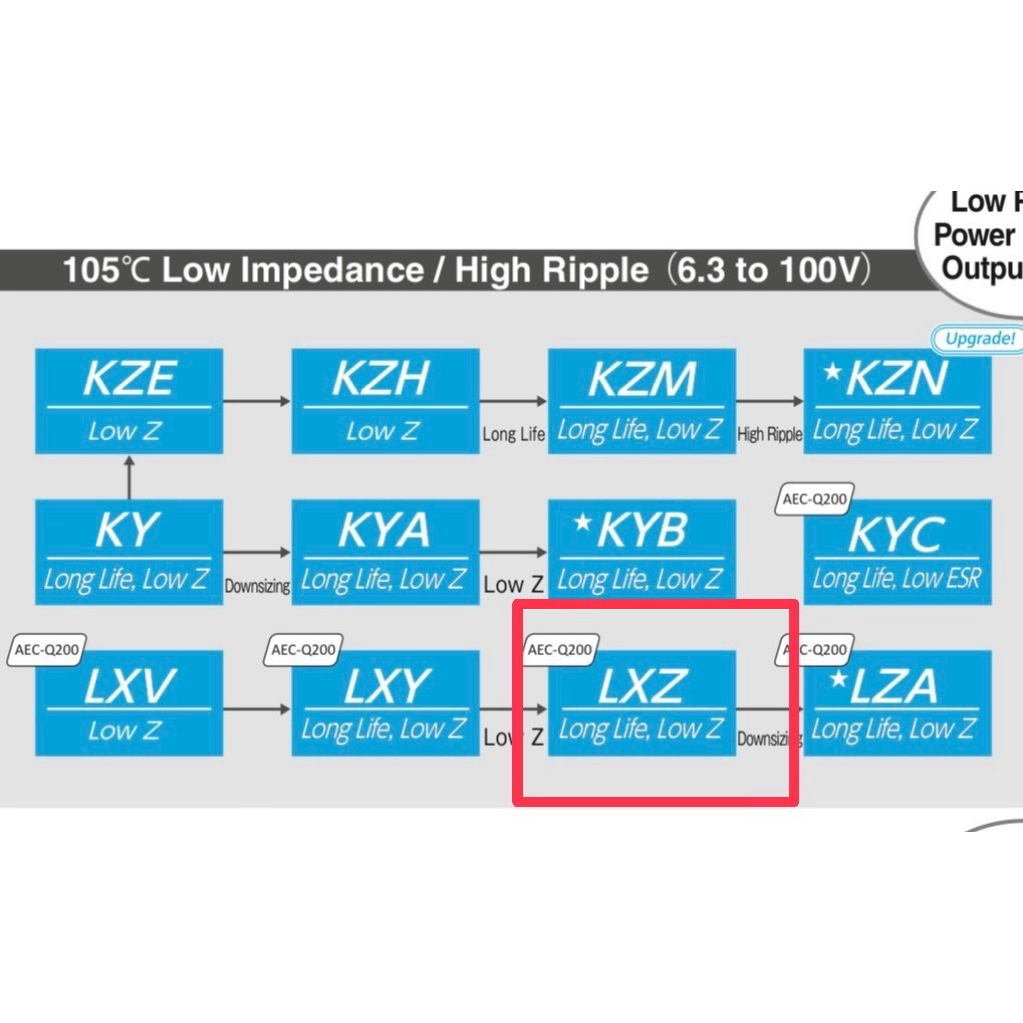

LXZ

Series

Adoption of innovative electrolyte and new technologies

Very low impedance at high frequency

Endurance with ripple current: 2,000 to 8,000 hours at 105"C

Solvent resistant type (see PRECAUTIONS AND GUIDELINES)

RoHS2 Compliant

AEC-Q200 compliant : Please contact Chemi-Con for more details, test data, information.

SPECIFICATIONS

Items

Category

-55 to +105 C

Temperature Range

Rated Voltage Range

6.3 to 63V dc

Capacitance Tolerance

+20% (M)

(at 20 C, 120Hz)

Leakage Current

I=0.01CV or 3 A, whichever is greater.

Where, I : Max. leakage current (UA), C : Nominal capacitance (uF), V : Rated voltage (V)

(at 20'C after 2 minutes)

Dissipation Factor

Rated voltage (Vdc)

6.3V

10V 16V 25V 35V 50V 63V

(tan 8)

tan 5 (Max.)

0.22

0.19 0.16 0.14 0.12 0.10 0.08

When nominal capactance exceeds 1,0000uF, add 0.02 to the value above for each 1,000 increase.

(at 20 C, 120Hz)
