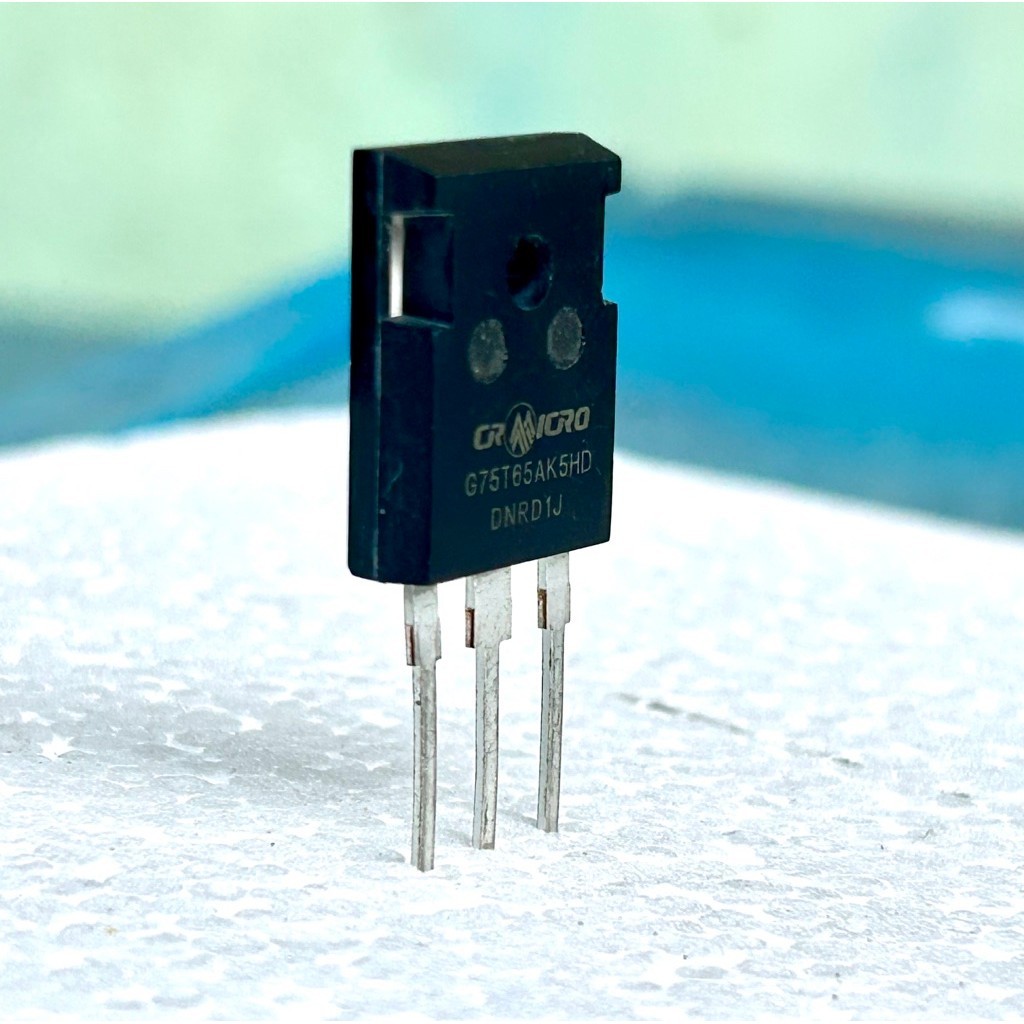

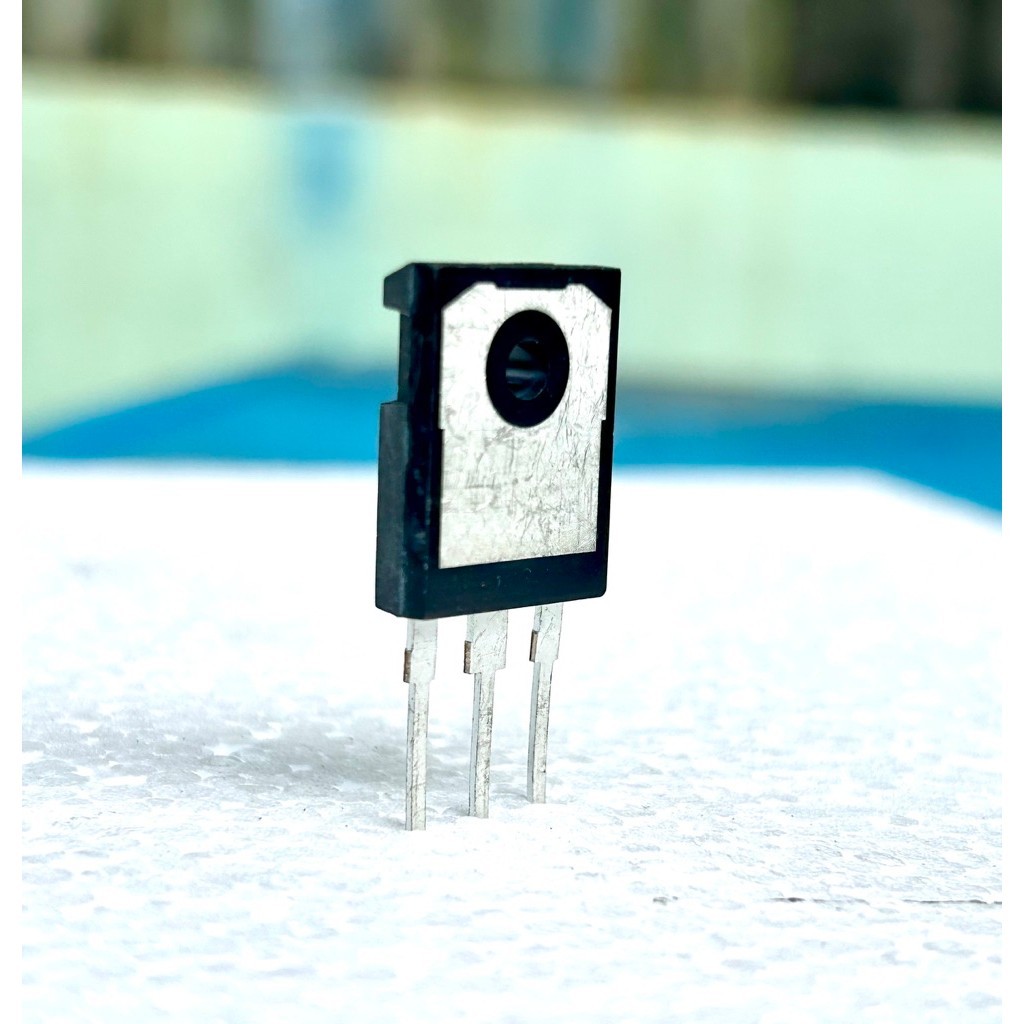

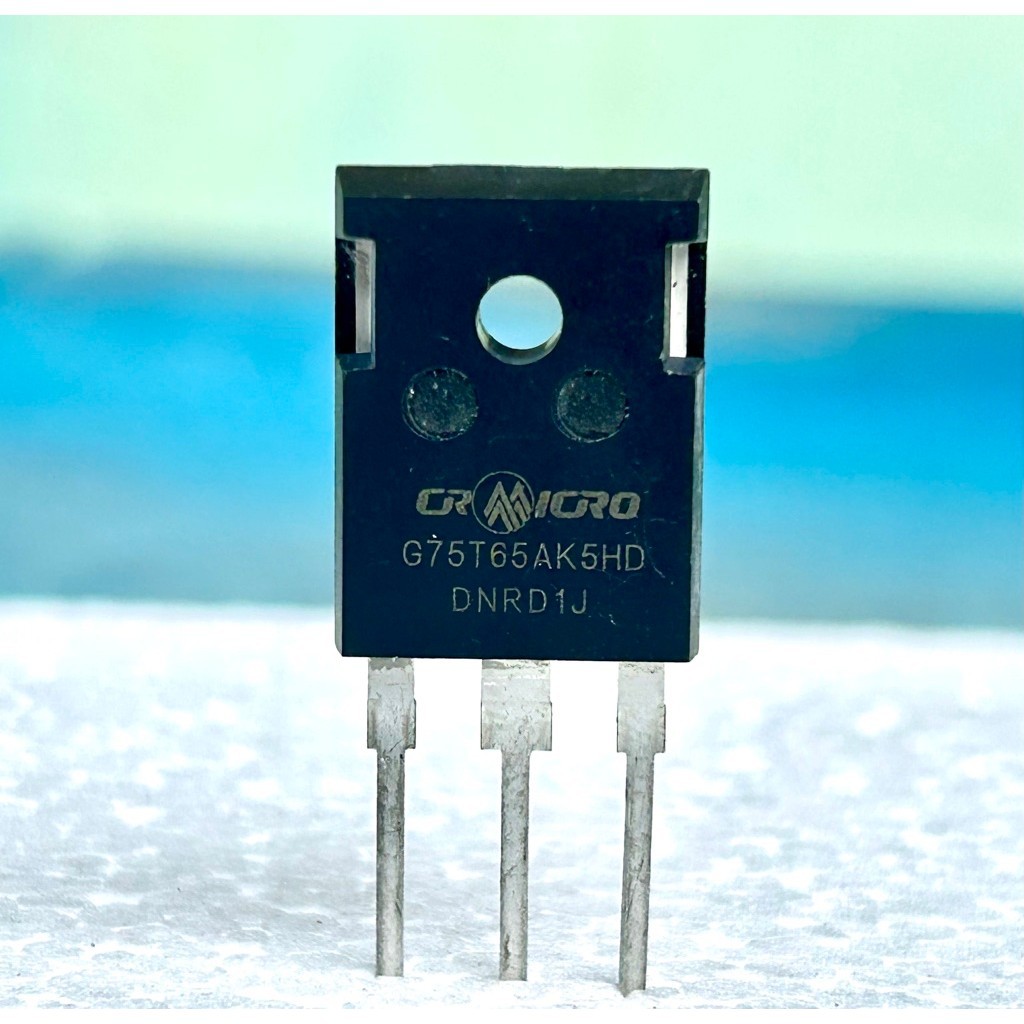

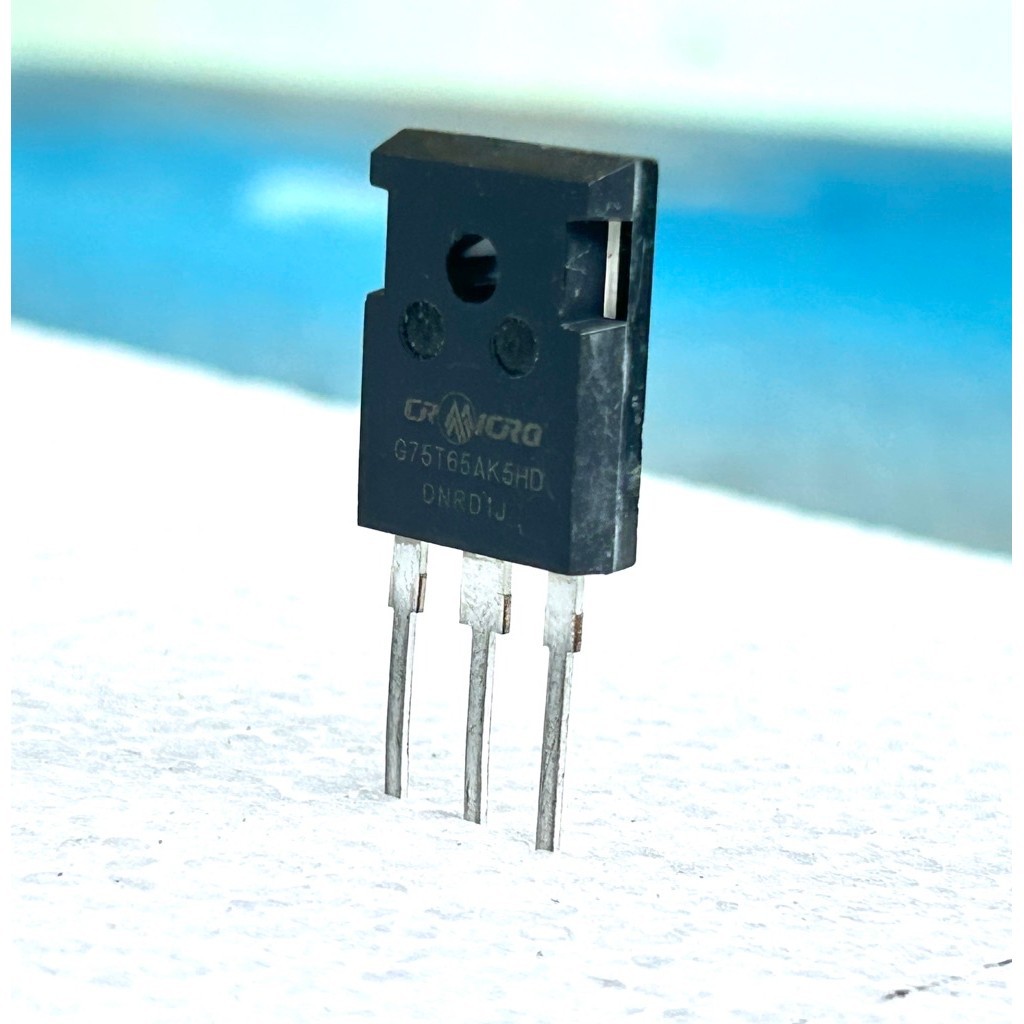

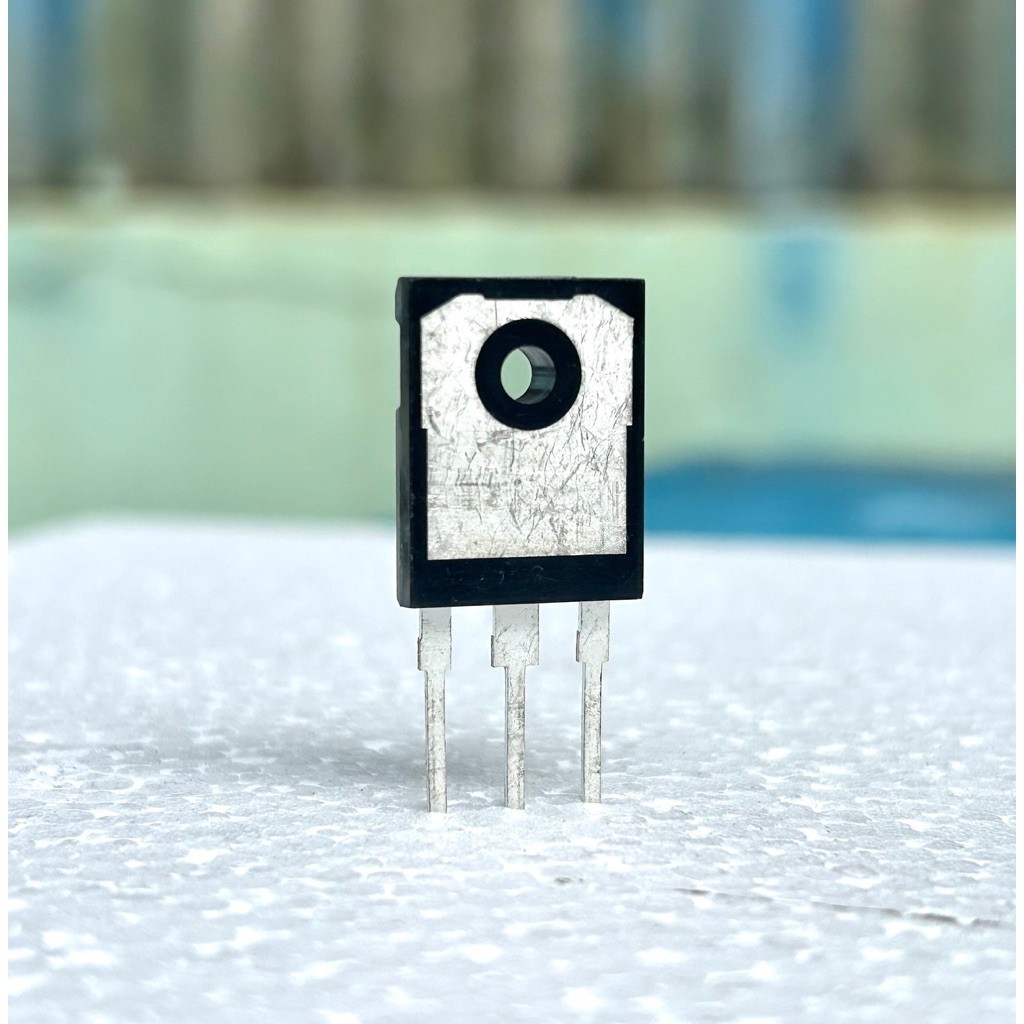

อะไหล่เครื่องเชื่อม Inverter UPS CRG75T65AK5HD IGBT 75A650V แท้CR-Micro(เหลือประกอบ)

Type Designator: CRG75T65AK5HD

Type: IGBT + Anti-Parallel Diode

Marking Code: G75T65AK5HD

Type of IGBT Channel: N

Pc O-Maximum Power Dissipation: 468 W

IVce|O-Maximum Collector-Emitter Voltage: 650 V

IVge|O-Maximum Gate-Emitter Voltage: 20 V

JIc|①-Maximum Collector Current: 90 A @259C

|VCEsat|O-Collector-Emitter saturation Voltage,

typ: 1.65 V @25

|VGEth|O-Maximum G-E Threshold Voltag: 6.5 V

TjO-Maximum Junction Temperature: 175 %C

tr @ - Rise Time, typ: 103 nS

CoesO- Output Capacitance, typ: 278 pF

Qg O- Total Gate Charge, typ: 173 nC

Package: TO247
