3เฟส 100mA เบรกเกอร์กันดูด Residual Current Circuit Breaker MCB CNC รุ่น RCBO-32A/4P

YCB9LE-80M RCBO Electronic

General

1.Protection against overloadand short-circuit currents

2.Protection against the effects of sinusoidalalternatingearthfault currents

3.Protection against indirect contacts andadditional protection against direct contacts.

4.Protectionagainst fire hazard causedby insulation faults

5.Usedin residential building

6.According to the type of instantaneousrelease dassified as follows:type B(3-5)In,type C(5-10)In,type D(10-20)In

The technical specifications for the CNC YCB9LE-80M C32 4P RCBO circuit breaker shown in the image are structured below.

Core Electrical Specifications

Rated Current (\(I_{n}\)): 32A

Rated Voltage (\(U_{n}\)): 400V~

Rated Frequency: 50Hz

Poles Configuration: 4P (3 Phases + Neutral)

Breaking Capacity (\(I_{cn}\)): 10kA (10000A)

Residual Operating Current (Δ n): 100mA

Break Time for Residual Current: ≤ 0.1s

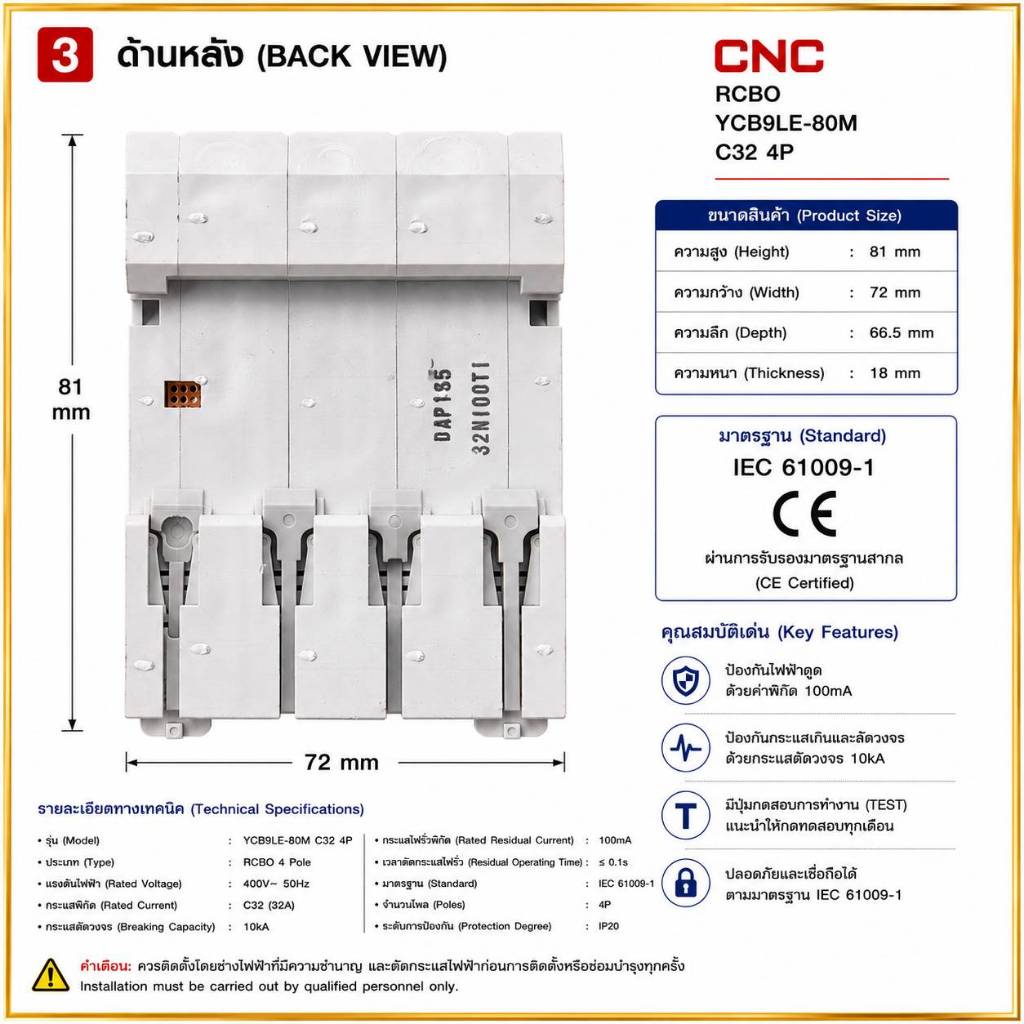

Mechanical & Physical Dimensions

Device Width: 72 mm

Device Height: 81 mm

Dimension Tolerance: ±1 mm

Wiring Configuration: Top ...
