GY-521 MPU-6050 3-axis GY521 Gyroscope Accelerometer

GY-521 MPU-6050 6 axis Accelerometer and Gyroscope Module

Features:

The GY-521 module is a breakout board for the MPU-6050 MEMS (Microelectromechanical systems) that features a 3-axis gyroscope, a 3-axis accelerometer, a digital motion processor (DMP), and a temperature sensor. The digital motion processor can be used to process complex algorithms directly on the board. Usually, the DMP processes algorithms that turn the raw values from the sensors into stable position data. The sensor values are retrieved by using the I2C serial data bus, which requires only two wires (SCL and SDA).

Description:

Use the chip: MPU-6050

Chip built-in 16 bit AD converter, 16 bits of data output

Power supply: 3V-5V

Communication modes: standard IIC communication protocol

Gyroscope range: + 250 500 1000 2000 ° / s

Acceleration range: ± 2 ± 4 ± 8 ± 16 g

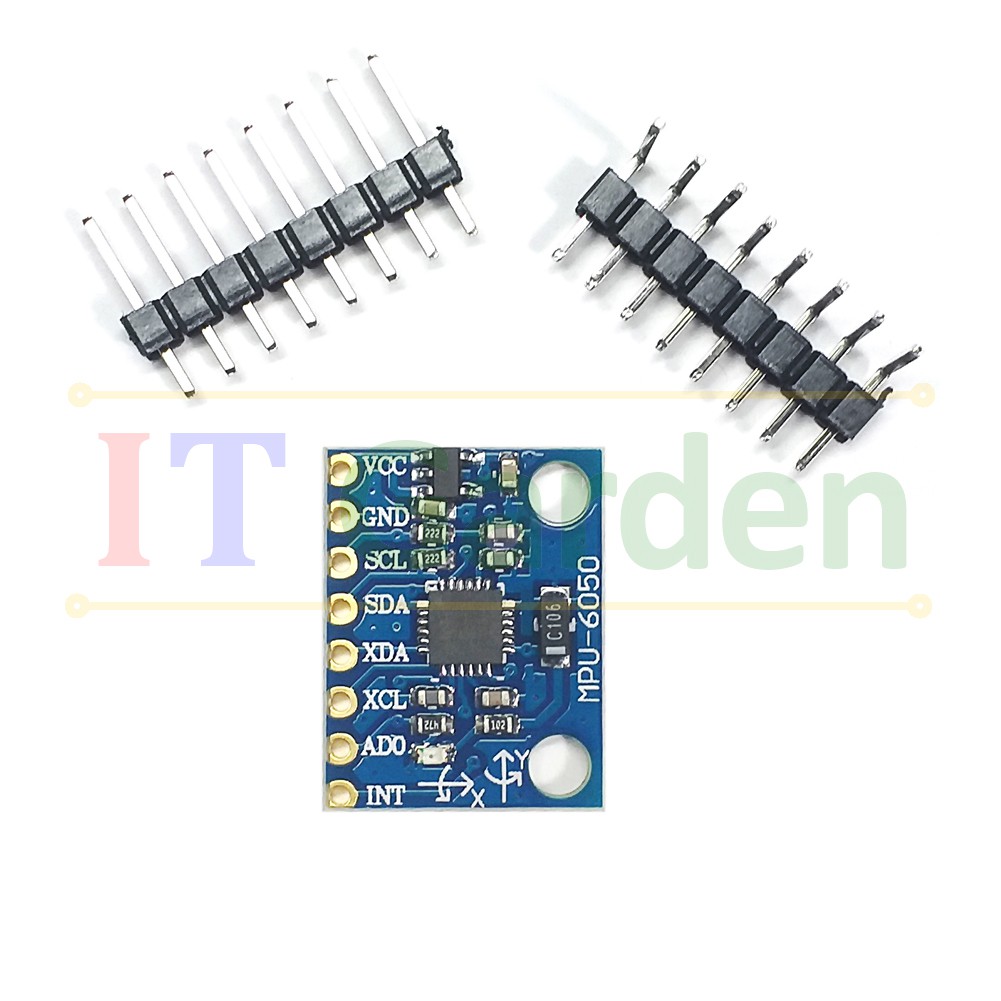

Pin Definition: VCC, GND, SCL, SDA, XDA, XCL, ADO, INT

Pitch: 2.54mm

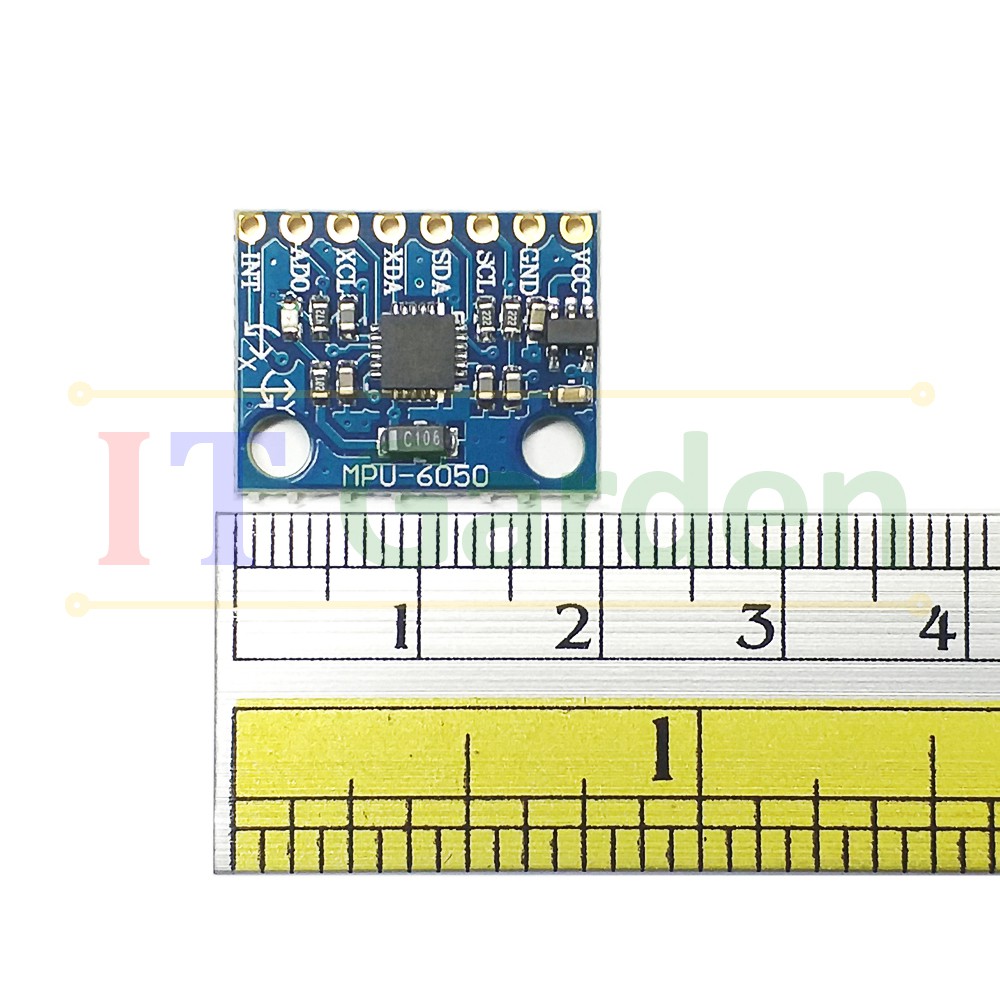

Board size : 20 x 16mm
