กดเด้งบานไม้ กดกระเด้งบานตู้ MODERNFORM IT-KPUSH-TECH

กดเด้งบานไม้ กดกระเด้งบานตู้ MODERNFORM IT-KPUSH-TECH

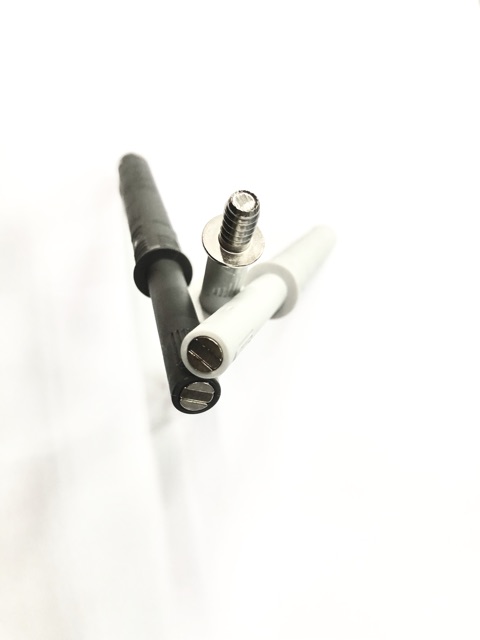

1 ชุดประกอบด้วย

ตัวเด้ง = 1

ฝาคลอบจับอุปกรณ์เด้ง = 1

แป้นเหล็กสำหรับดูดบาน = 1

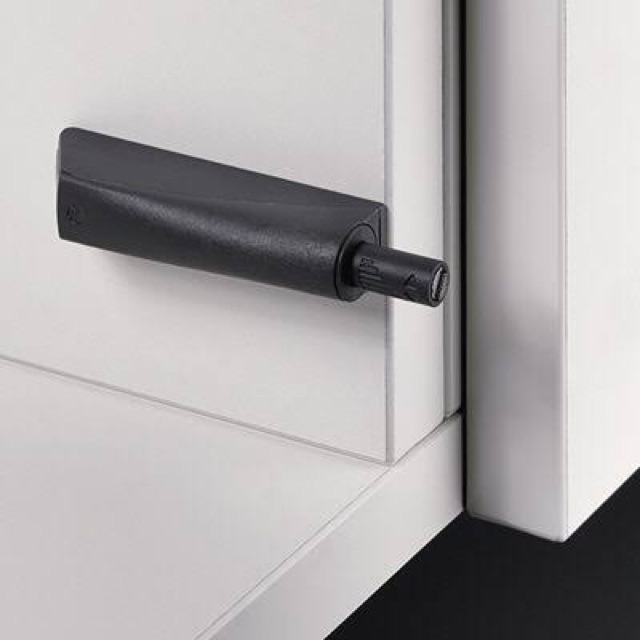

K PUSH TECH

K PUSH TECH is the fully renewed and extended program of automatic opening systems for doors without handles or knobs.

A special inner mechanism provides a very silent, yet powerful utilization, granting a long durability which makes it perfectly suitable for a wide range of doors.

K PUSH TECH is available:

- with buffer, for cabinets using sprung hinges.

- with magnet, for cabinets using unsprung hinges or negative hinges (Highest magnet strength available in the market).

K PUSH TECH program, includes an innovated range of spring strengths and three lengths of the output paths:

Short – 14 mm, Medium – 20 mm, Long – 37 mm.

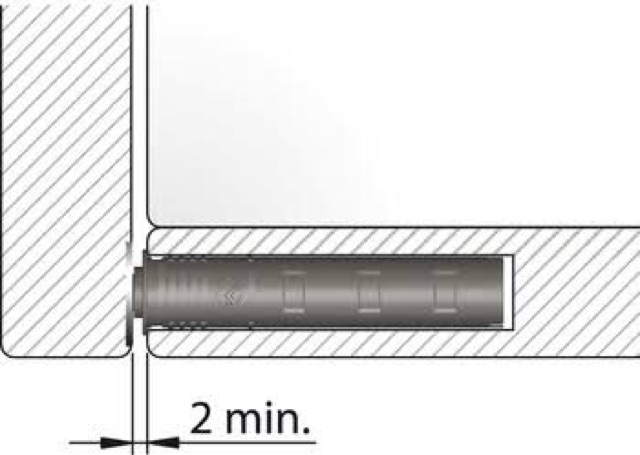

Gap between door and cabinet is reduced: activation gap is 1,4 mm, ring thickness is 0,6 mm.

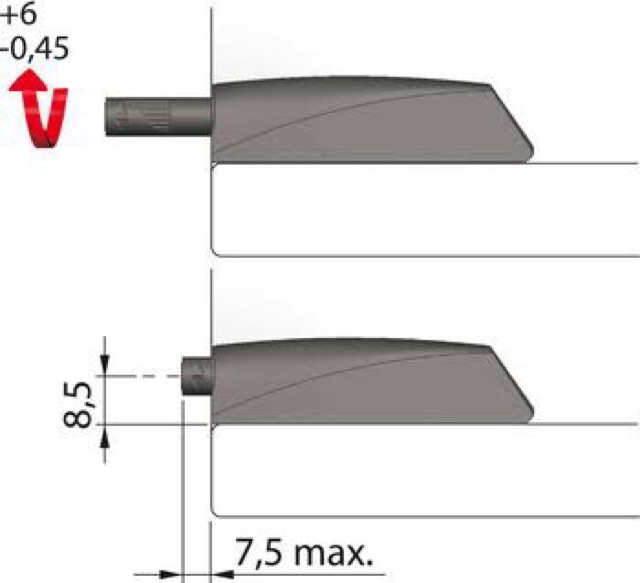

Wide adjustment feature: +6 / -0.45 mm; beyond this negative adjustment the spring is deactivated.

PATENT PENDING REGISTERED DES...
