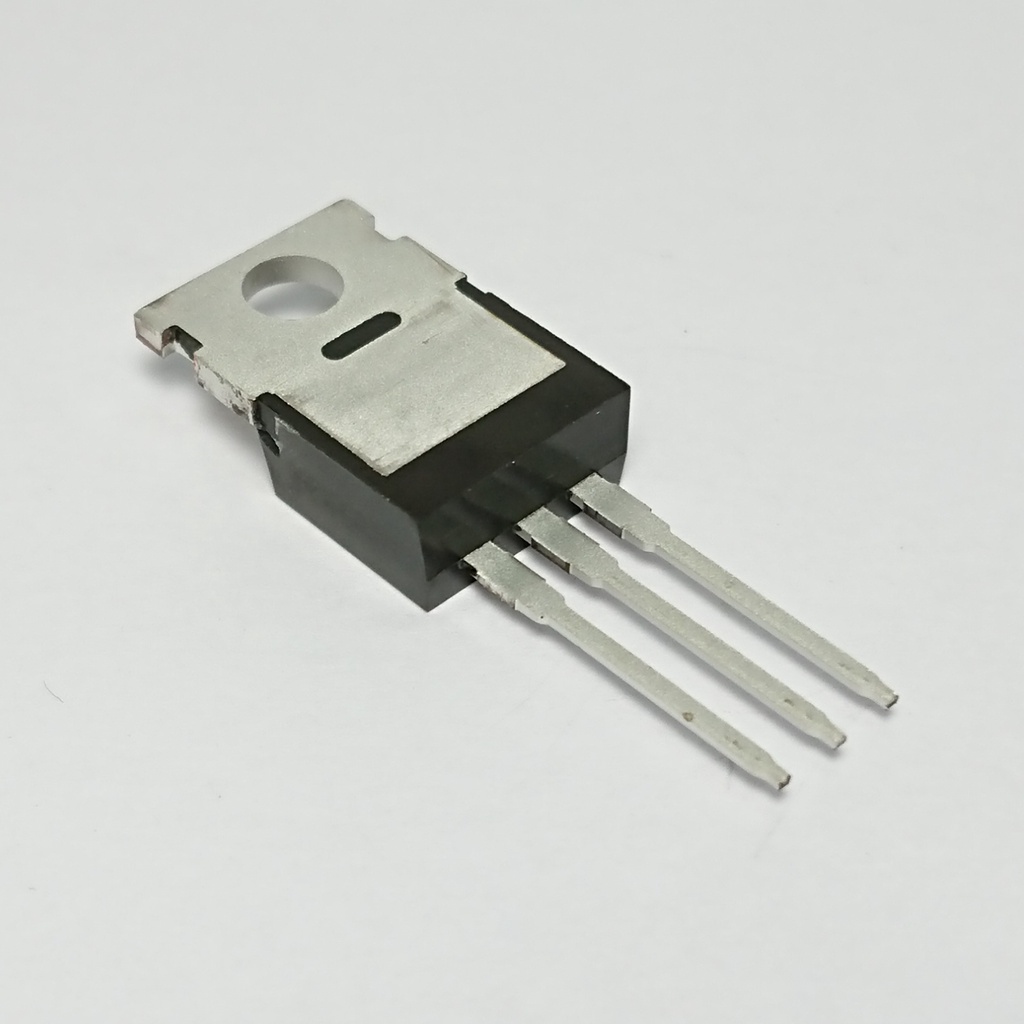

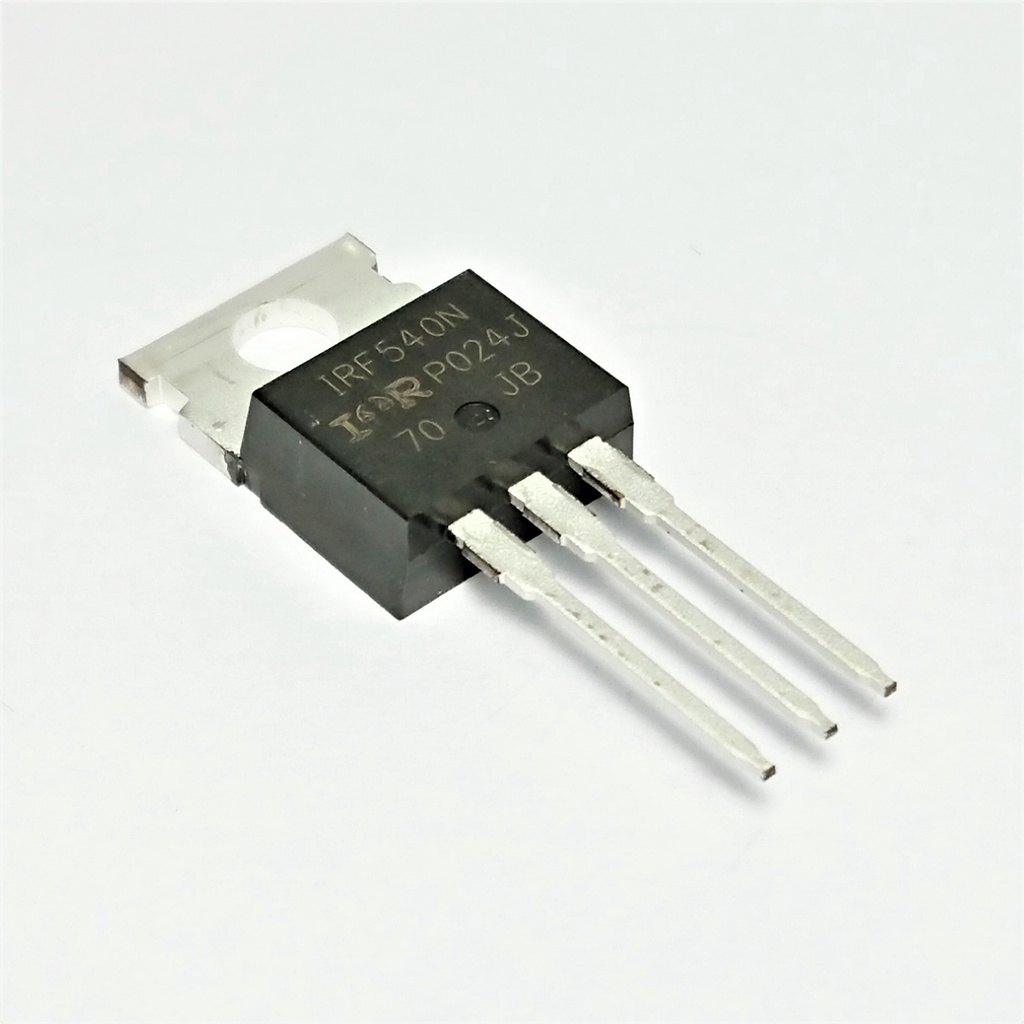

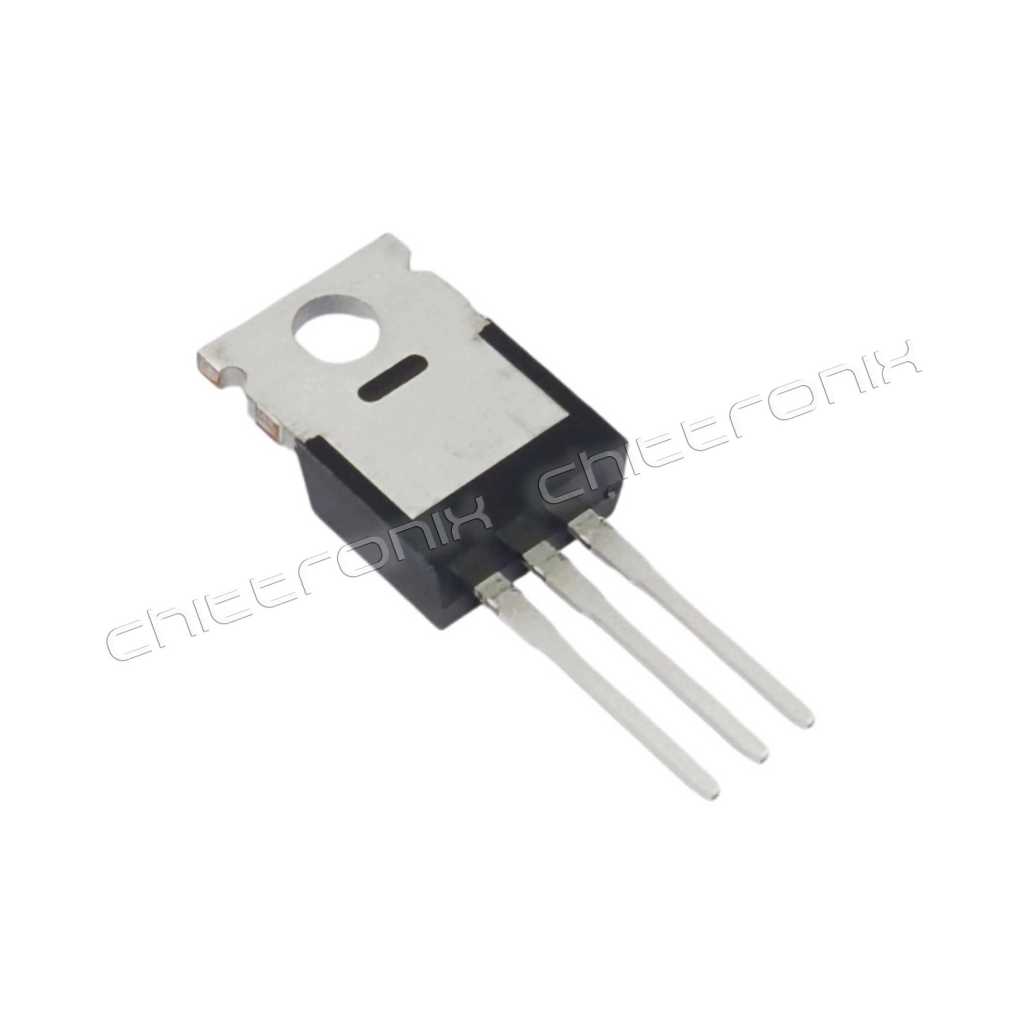

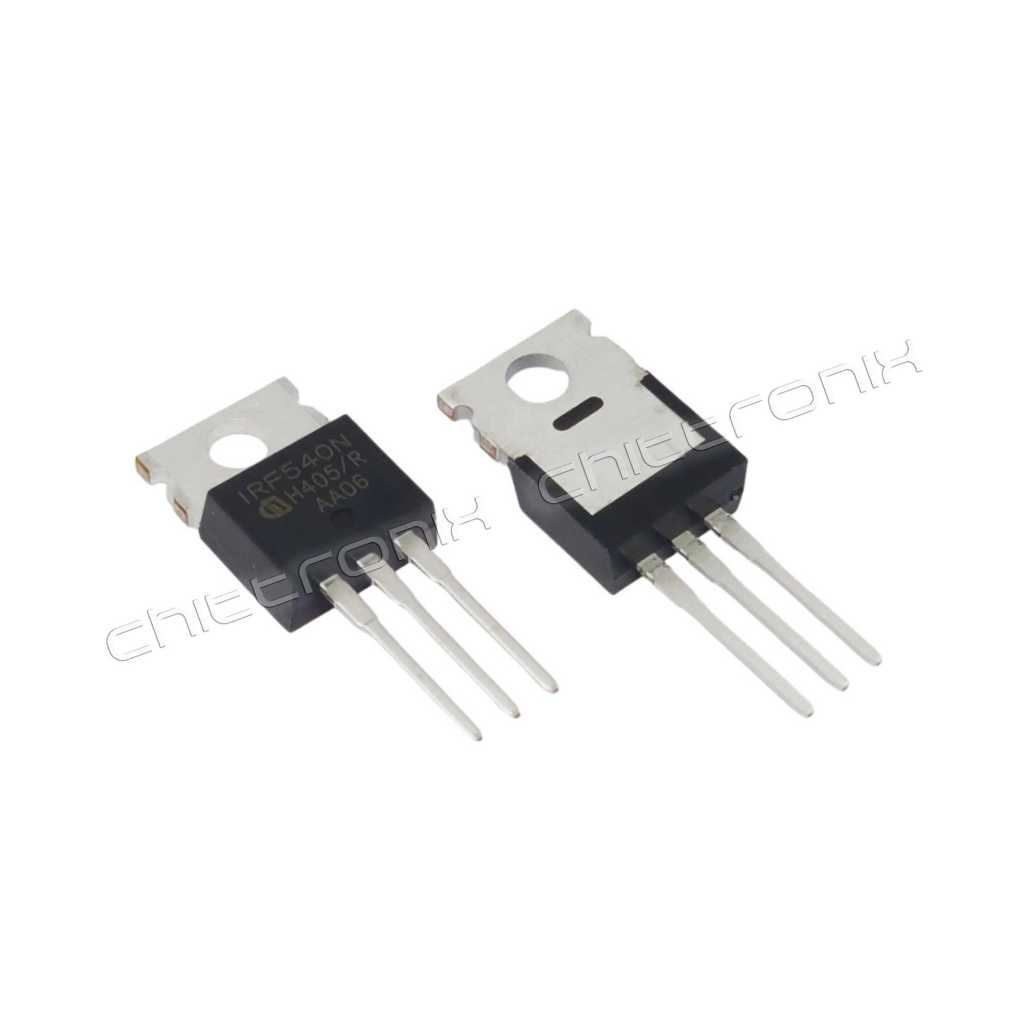

IRF540N มอสเฟต Mosfet ยี่ห้อ Infineon / IR

Manufacturer: Infineon

Product Category: MOSFET

Technology: Si

Mounting Style: Through Hole

Package / Case: TO-220-3

Transistor Polarity: N-Channel

Number of Channels: 1 Channel

Vds - Drain-Source Breakdown Voltage: 100 V

Id - Continuous Drain Current: 33 A

Rds On - Drain-Source Resistance: 44 mOhms

Vgs - Gate-Source Voltage: - 20 V, + 20 V

Vgs th - Gate-Source Threshold Voltage: 2 V

Qg - Gate Charge: 47.3 nC

Minimum Operating Temperature: - 55 C

Maximum Operating Temperature: + 175 C

Pd - Power Dissipation: 140 W

Channel Mode: Enhancement

Packaging: Tube

Configuration: Single

Height: 15.65 mm

Length: 10 mm

Transistor Type: 1 N-Channel

Width: 4.4 mm

Brand: Infineon / IR

Product Type: MOSFET
