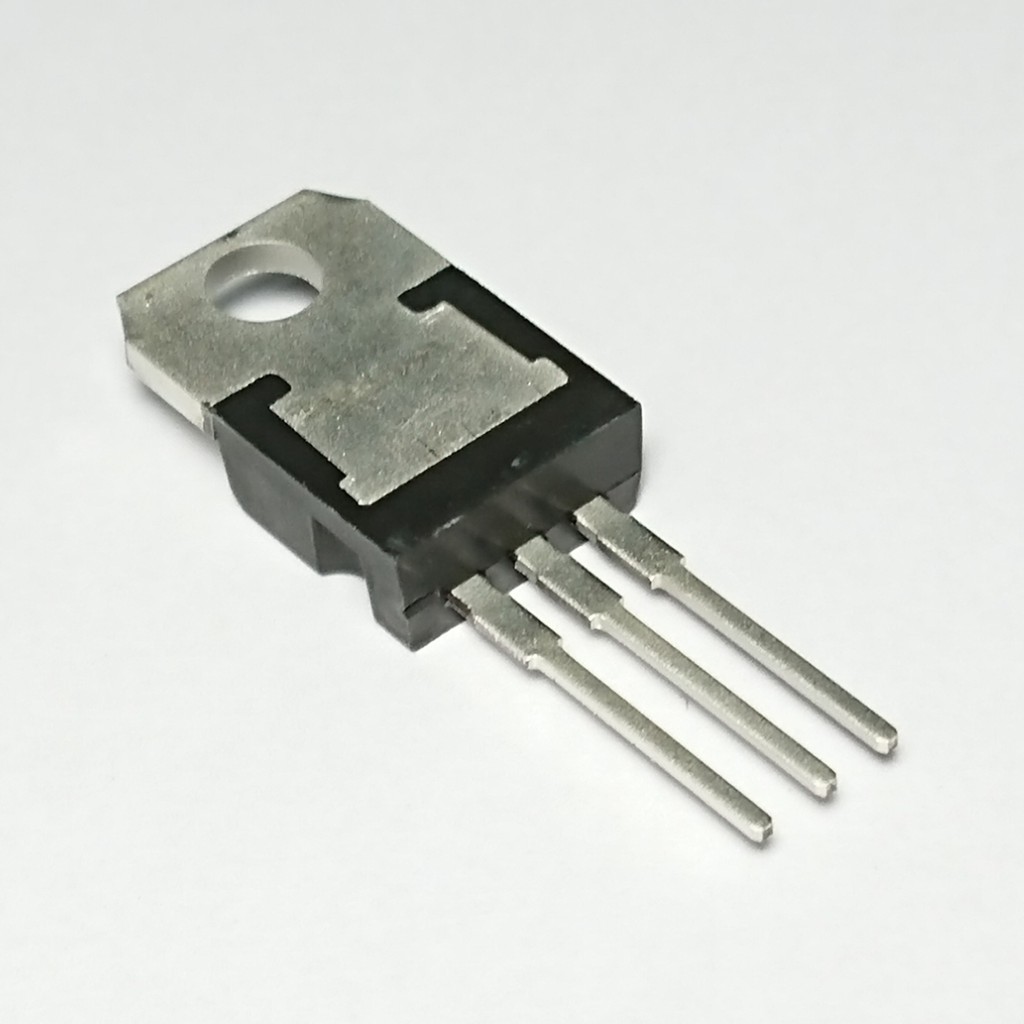

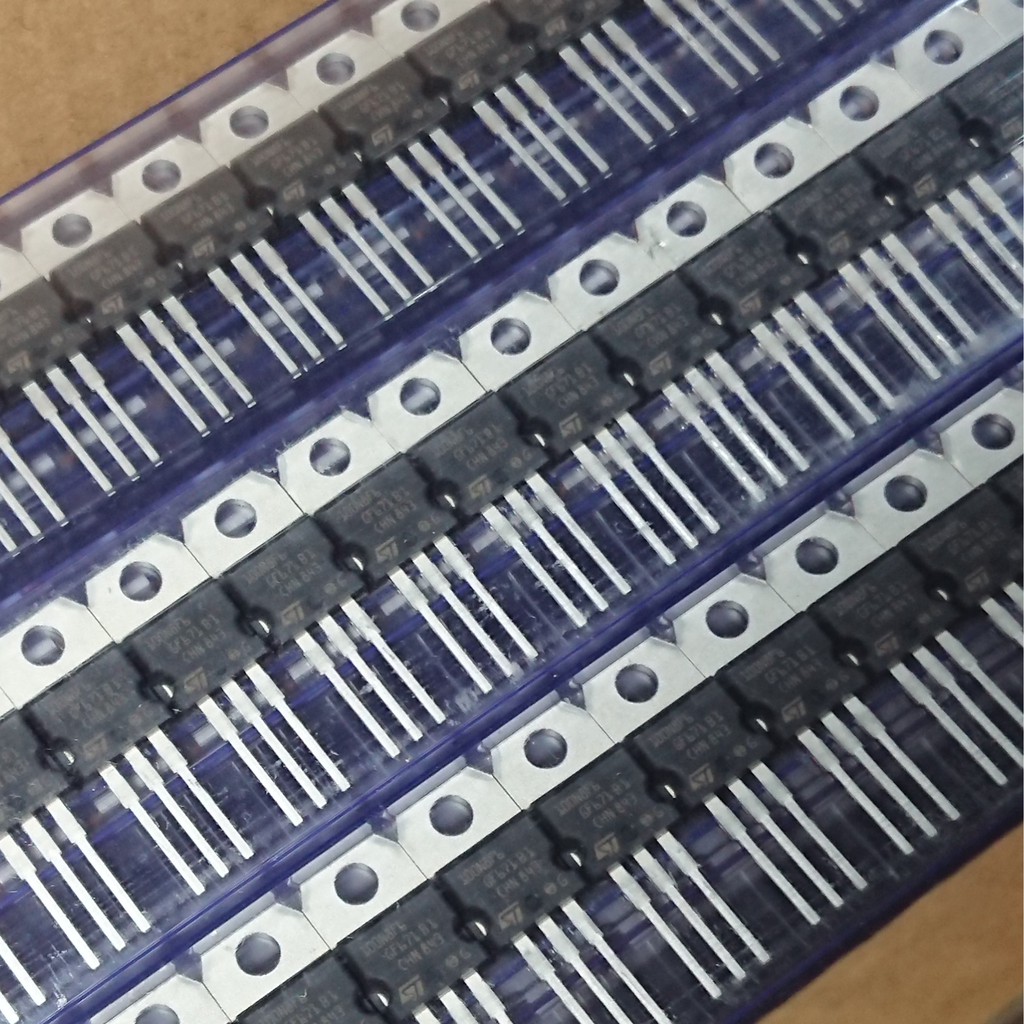

STP100N8F6 มอสเฟต Mosfet ภาคจ่ายไฟแอมป์รถยนต์ ยี่ห้อ ST แท้

Type Designator: STP100N8F6

Marking Code: 100N8F6

Type of Transistor: MOSFET

Type of Control Channel: N -Channel

Maximum Power Dissipation (Pd): 176 W

Maximum Drain-Source Voltage |Vds|: 80 V

Maximum Gate-Source Voltage |Vgs|: 20 V

Maximum Gate-Threshold Voltage |Vgs(th)|: 4 V

Maximum Drain Current |Id|: 100 A

Maximum Junction Temperature (Tj): 175 °C

Total Gate Charge (Qg): 100 nC

Rise Time (tr): 46 nS

Drain-Source Capacitance (Cd): 244 pF

Maximum Drain-Source On-State Resistance (Rds): 0.009 Ohm

Package: TO-220
